Design of Control Element	Toggle
Main Circuit Electrical Connection	Bolt Connection
Main Current Circuit Connection Position	Front Side
MCCB Type	XT4 Frame
Overload Release Current Setting (A)	100
Rated Instantaneous Short-Circuit Current - Ii (A)	250
S/I (1 to 10 x In) - I2/I3 (A)	250 - 2500
Tripping Unit	Ekip DIP LS/I
Brand	ABB
Breaking Capacity (kA)	36
Breaking Capacity 415V AC - Icu (kA)	36
Current Rating (A)	250
Degree of Protection	IP20
EAN	8015644020446
L (0.4 to 1 x In) - I1 (A)	100 - 250
No. of Poles	4
Poles	4P
Power Loss (W)	16.4
Rated Current (A)	250
Rated Uninterrupted Current - Iu (A)	250
Rated Voltage (V)	690
Size of Frame	XT4
Trip Unit	Ekip DIP LS/I
Trip Unit - Electronic	Ekip DIP LS/I

Moulded Case Circuit Breakers

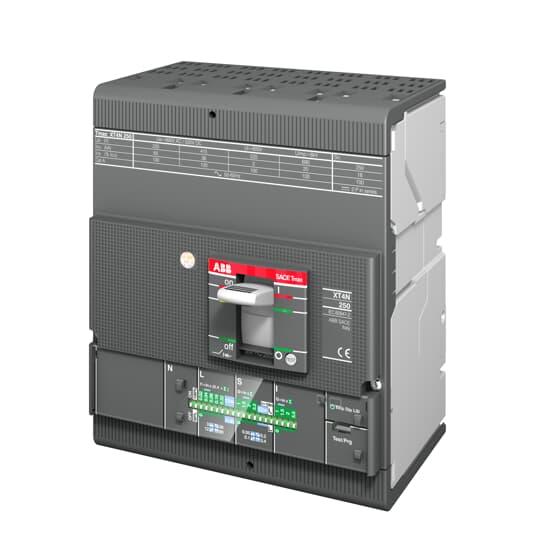

ABB XT4N 250 EKIP LS/I IN=250A 4P F F 1SDA068147R1
