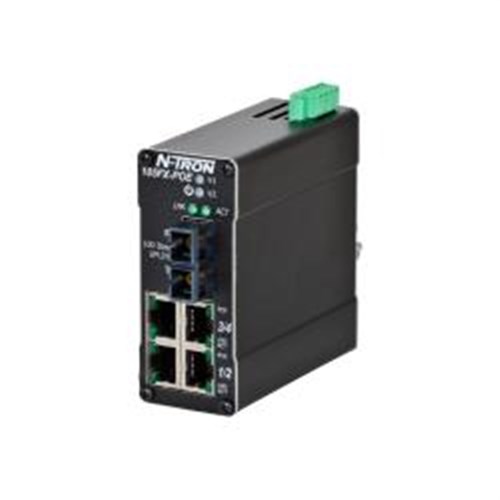

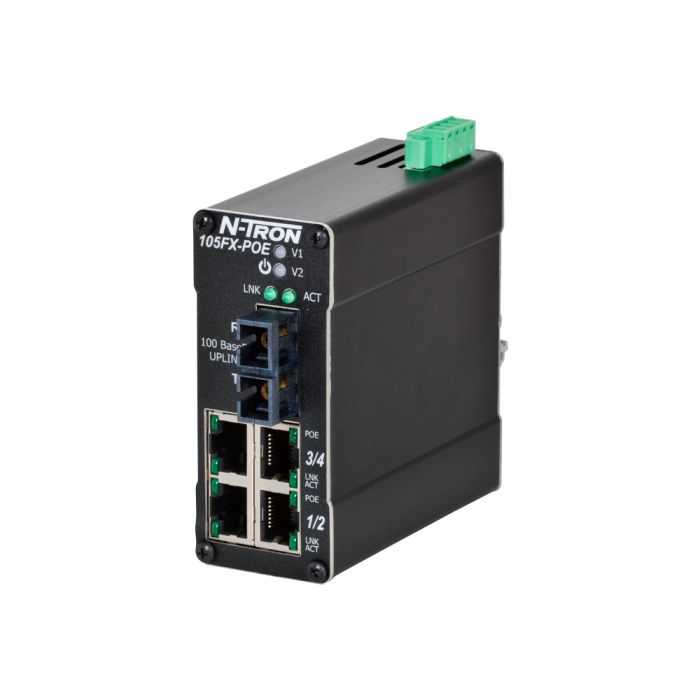

RED LION 5 PORT UNMANAGED INDUSTRIAL POE SWITCH 105FX-SC-POE

Product Code: 105FX-SC-POE

Enhance your network's performance with the Red Lion SFP Transceiver, a reliable multimode solution designed for switches within the network solutions category. This compact transceiver delivers speeds of up to 100Mbps and supports data transmission over distances of up to 2km. Part of the versatile SFP series, it ensures seamless integration and robust connectivity for your networking requirements.

Technical Specifications

Current Consumption (mA) Full Load: 1600 at 48VDC, No PoE: 65 at 48VDC
DIN Rail Width (mm) 35
No. of 100Mb Ports 1
No. of Ethernet Ports 4
Brand RED LION
Cable Type FX Cable - Single Mode
Connector Type FX Port - SC
Dimensions (mm) 97H x 38W x 90D
Mounting Type DIN Rail
No. of Ports 4 x 10/100BASE-TX PoE RJ45, 1 x 100BASE-FX
Operational Temperature Range (°C) -40 to +85
Rated Operational Voltage DC (V) 46 - 49
Series SFP
Standards and Approvals FCC, ICES-003, EN61000-6-2, UL508, IEEE1613
Switch Type Switch - Unmanaged
