Actuating Element	Magnet
Direction of Motion	Head-on to the Active Surface
Installation Conditions	Not Flush
Maximum Storage Temperature (°C)	80
Maximum Switching Capacity (W)	0.24
Maximum Switching Frequency (Hz)	5
Minimum Ambient Temperature (°C)	-25
Minimum Storage Temperature (°C)	-25
No. of Cables	6
Recommended Actuator	BPS 40S-2
Recommended Safety Switchgear	SRB-E-301ST
Resistance to Shock (g/ms)	30g / 11ms
Resistance to Vibrations	10 ... 55Hz, Amplitude 1mm
Sensor Height (mm)	27
Sensor Length (mm)	14.5
Sensor Width (mm)	88
Termination	Cable
Brand	SCHMERSAL
Cable Length (m)	3
Degree of Protection	IP69
Housing Material	Stainless Steel (V4A)
Maximum Ambient Temperature (°C)	80
Maximum Switching Current (A)	0.01
No. of Normally-closed Contacts	2
No. of Normally-open Contacts	1
Standards and Approvals	EN IEC 60947-5-3, EN ISO 13849-1
Wire Cross Section (mm²)	0.25mm² (Diameter)

Safety Pushbuttons & Operator Devices

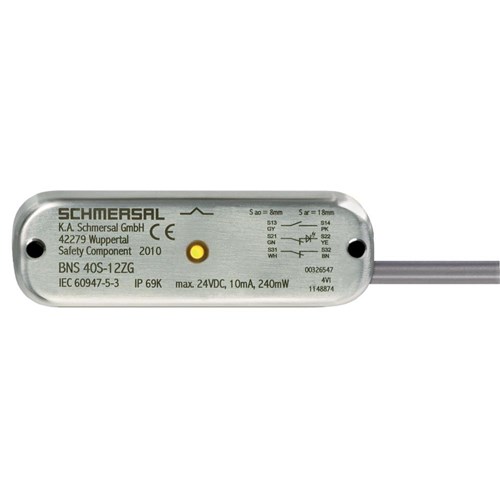

SCHMERSAL BNS 40S-12ZG 3.0M 103000646
