Product Code: 101207728

Enhance your machine safety with the Schmersal KA Series Safety Light Curtains, featuring an 8-pole pre-wired cable with a matching number of wires for seamless integration. The robust screw connection terminal ensures secure and reliable connections. With a 5-meter cable length, this component is designed for flexibility in installation while operating at a voltage of 30V and a contact load capacity of 2. Trust in Schmersal's commitment to safety for your machinery needs.

eCl@ss Number, Version 11.0	27-27-26-92
eCl@ss Number, Version 9.0	27-37-12-18
ETIM 6.0	EC001483
ETIM 7.0	EC000030
Gross Weight (g)	163.08
Maximum Fuse Rating	6 A gG D-fuse
Maximum Temperature (°C)	90/80
Minimum Ambient Temperature (°C)	-30
Minimum Temperature (°C)	-30/-40
Net Weight (g)	80
Rated Maximum Operational Voltage DC (V)	30
Sensor Height (mm)	138
Sensor Length (mm)	103
Switching Element	Opener (NC)
Utilisation Category AC-15	230 VAC
Utilisation Category DC-13	24 VDC
Brand	SCHMERSAL
Contact Material	Silver
Degree of Protection	IP67
EAN	4.03E+12
Enclosure Material	Aluminium
Maximum Ambient Temperature (°C)	80
Maximum Cable Cross Section (mm²)	2.5
Minimum Mechanical Life	20000000 Operations
No. of Poles	8
Series	KA
Standards	EN IEC 60947-5-1
Terminal Type	Cable

Presence Sensing Safety Devices

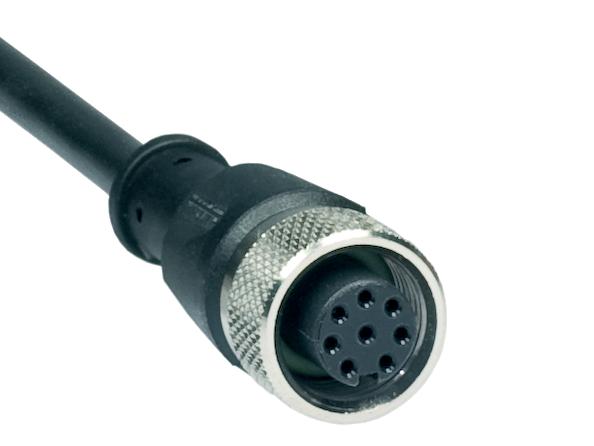

SCHMERSAL KA-0904 CONNECTOR 101207728

Product Code: 101207728
