Conduction Resistance (O) |
40 |
|
Contact Resistance (O) |
0.1 |
|
Frequency Range (Hz) |
50 - 60 |
|
Input Signal |
10 - 30V DC (HIGH Signal), 0 - 2V DC (LOW Signal) |
|
Maximum Rated Control Voltage AC (V) |
26.4 |
|
Maximum Rated Control Voltage DC (V) |
28.8 |
|
Maximum Storage Temperature (°C) |
70 |
|
Maximum Switching Capacity (A) |
2A (Auxiliary Contacts), 8A (Safe Relay Outputs) |
|
Maximum Switching Capacity AC (V) |
250V (Safe Relay Outputs) |
|
Maximum Switching Capacity DC (V) |
24V (Auxiliary Contacts) |
|
Minimum Ambient Temperature (°C) |
0 |
|
Minimum Rated Control Voltage AC (V) |
20.4 |
|
Minimum Rated Control Voltage DC (V) |
20.4 |
|
Minimum Storage Temperature (°C) |
-25 |
|
Minimum Switching Capacity (mA) |
10mA (Safe Relay Outputs) |
|
Minimum Switching Capacity DC (V) |
10V (Safe Relay Outputs) |
|
No. of LEDs |
1 |
|
No. of Safety Contacts |
1 |
|
No. of Signalling Outputs |
2 |
|
Rated Operational Current AC-15 (A) |
6A (Safe Relay Outputs) |
|
Rated Operational Current DC-12 (A) |
0.1A (Digital Output) |
|
Rated Operational Current DC-13 (A) |
6A (Safe Relay Outputs) |
|
Rated Operational Voltage AC-15 (V) |
230V (Safe Relay Outputs) |
|
Rated Operational Voltage DC-12 (V) |
24V (Digital Output) |
|
Rated Operational Voltage DC-13 (V) |
24V (Safety Relay Outputs) |
|
Resistance to Shock (g/ms) |
30g / 11ms |
|
Resistance to Vibrations |
10...55Hz, Amplitude 0.35mm, ± 15 % |
|
Termination |
Screw Terminals M20 x 1.5 |
|
Thermal Test Current (A) |
6 |
|
Voltage Type |
DC |
|

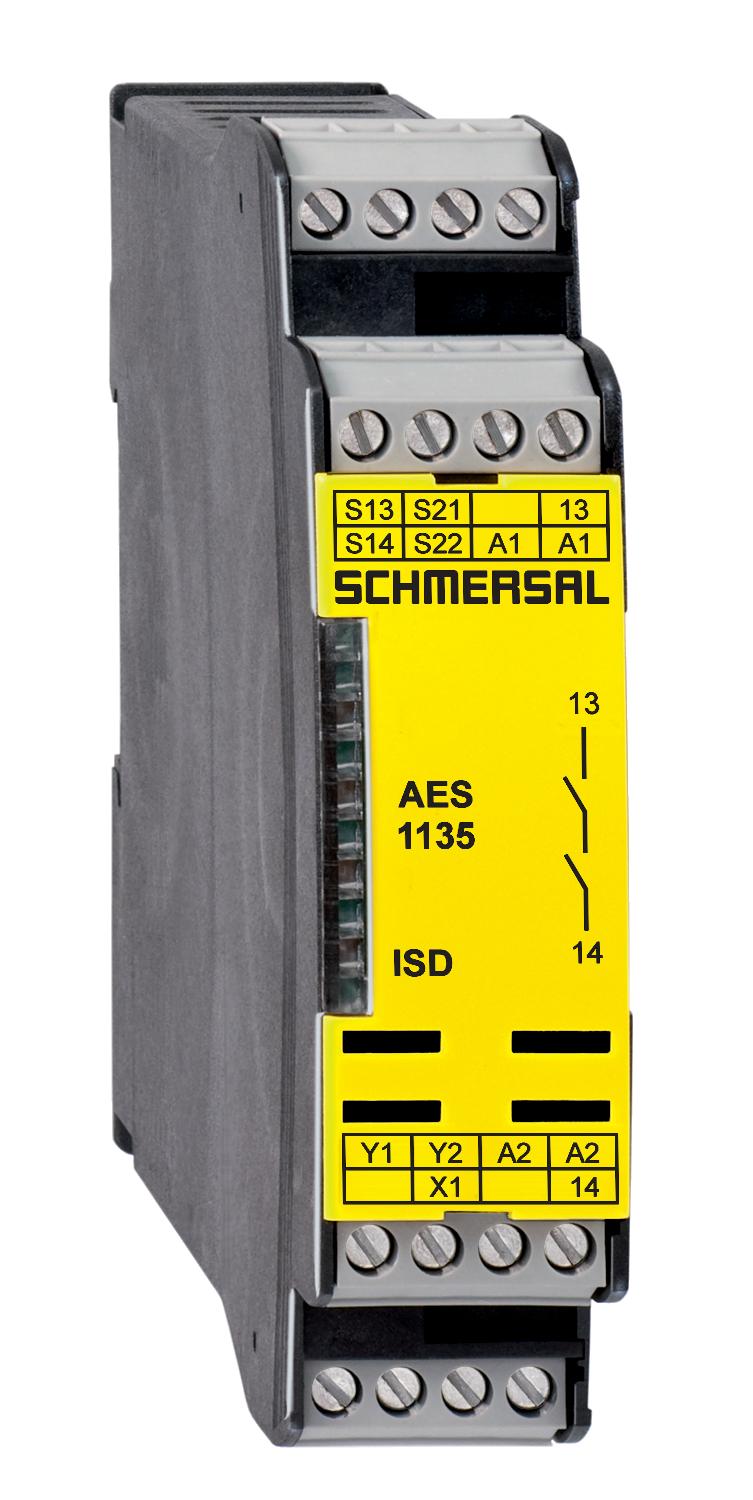

Brand |
SCHMERSAL |
|
Contact Material |
Ag-Ni 10 and 0.2 µm gold-plated |
|
Degree of Protection |
IP40, Clips - IP20 |
|
Depth (mm) |
121 |
|
Height (mm) |
100 |
|
Housing Material |
Glass-fibre, Reinforced Thermoplastic, Ventilated |
|
Maximum Ambient Temperature (°C) |
55 |
|
Maximum Cable Cross Section (mm²) |
2.5 |
|
Minimum Cable Cross Section (mm²) |
0.25 |
|
Minimum Mechanical Life |
20000000 Operations |
|
No. of Normally-closed Contacts |
2 |
|
No. of Normally-open Contacts |
1 |
|
Pollution Degree |
2 |
|
Power Consumption (W) |
5 |
|
Rated Impulse Withstand Voltage (kV) |
4 |
|
Rated Operational Voltage (V) |
24V AC -15%/+10% |
|
Standards and Approvals |
EN IEC 60947-5-1, EN IEC 61508, EN 60068-2-3 |
|
Tightening Torque (Nm) |
0.6 |
|
Width (mm) |
22.5 |
