Product Code: 101154699

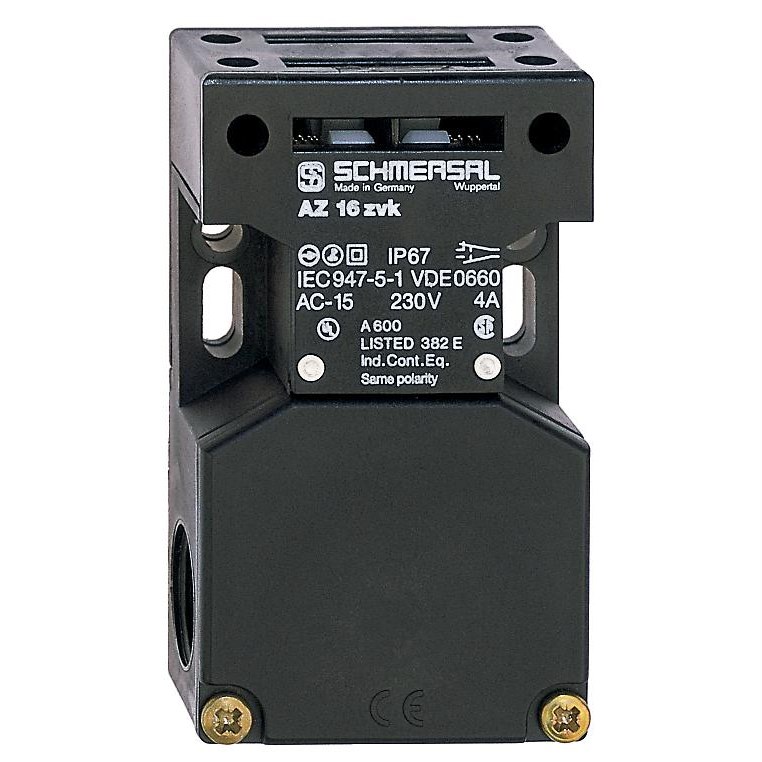

The Schmersal AZ16 Series safety switch is engineered for machine safety with a robust thermoplastic enclosure and a separate actuator designed to ensure reliable operation. This switch features two safety contacts and utilizes a screw connection terminal for secure wiring. The opener (NC) switching element is rated for a thermal test current of 10 A, with performance specifications including a utilisation category of AC-15 at 230 VAC, 4 A, and DC-13 at 24 VDC, 4 A. Ideal for applications requiring stringent safety measures, this safety switch does not include auxiliary contacts but delivers an effective ejection force to maintain operational integrity.

Cable Note	All indications including the conductor ferrules.
Coding Level According to EN ISO 14119	High
eCl@ss Number, Version 11.0	27-27-34-02
eCl@ss Number, Version 9.0	27-27-34-02
ETIM 6.0	EC002887
ETIM 7.0	EC002635
Gross Weight (g)	35
Housing Construction Form	Norm construction design
Maximum Actuating Speed (m/s)	1
Maximum Fuse Rating	6 A gG D-fuse
Maximum Temperature (°C)	80
Minimum Ambient Temperature (°C)	-30
Minimum Positive Break Force (N)	40
Minimum Temperature (°C)	-30
Net Weight (g)	28
No. of Auxiliary Contacts	2
No. of Safety Contacts	1
Rated Short-circuit Current (A)	1000
Sensor Height (mm)	27
Sensor Length (mm)	33
Switching Element	Opener (NC)
Switching Principle	Slow action
Thermal Test Current (A)	0.25
Utilisation Category	DC-13 \| AC-15
Utilisation Category DC-13	0.25 A
Wire Cross-Section	0.25 mm
Working Principle	Electromechanical
Brand	SCHMERSAL
Actuator Type	Offset roller lever
Contact Material	Silver
Degree of Protection	IP67
EAN	4030660000000
Enclosure Material	Aluminium
Maximum Ambient Temperature (°C)	65
Maximum Cable Cross Section (mm²)	1
Minimum Cable Cross Section (mm²)	0.34
Minimum Mechanical Life	1000000 Operations
Overvoltage Category	3
Rated Impulse Withstand Voltage (kV)	6
Rated Insulation Voltage (V)	250
Series	AZ16
Standards	EN IEC 61496-1 / EN IEC 61496-2
Storage Temperature (°C)	-25 to 85
Terminal Type	Screw terminals M20 x 1.5

Safety Pushbuttons & Operator Devices

SCHMERSAL AZ16-02ZVK-M16 SAFETY SWITCH WITH SEPARATE ACTUATOR 101154699
