Product Code: 101147045

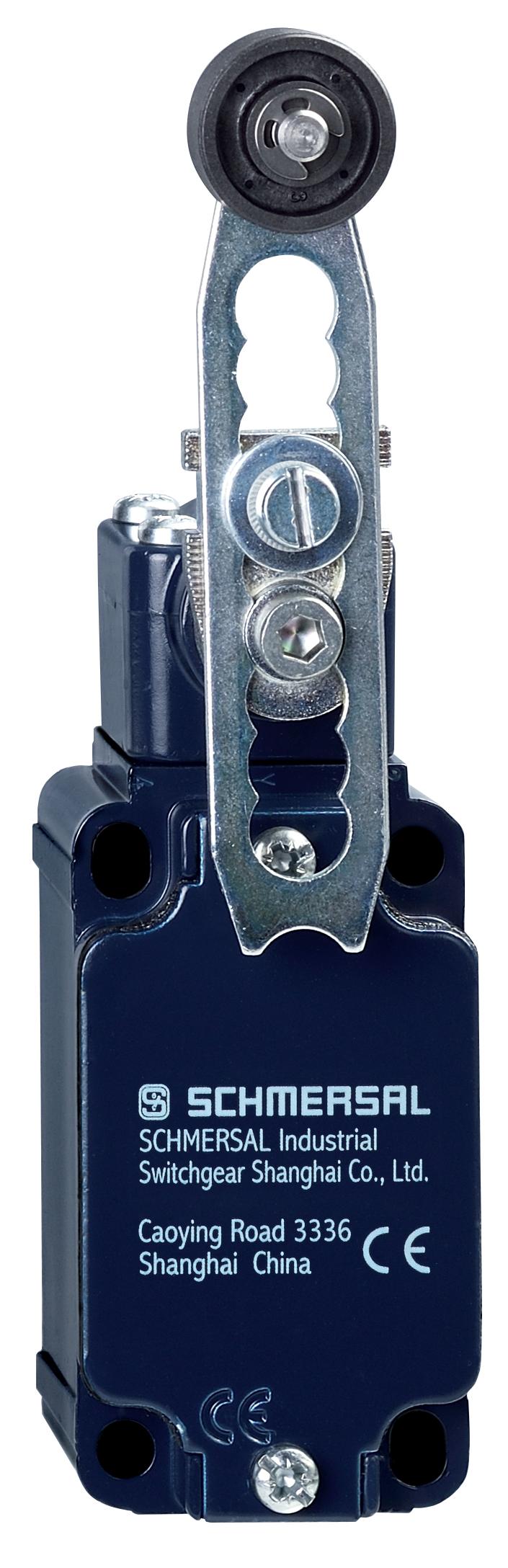

The Schmersal Series 335 position switch is a robust machine safety component designed with a durable metal enclosure and equipped with a roller lever actuating element. This switch features an opener (normally closed) switching element, ensuring reliable operation in critical applications. It has a thermal test current of 10 A and can handle various utilisation categories: AC-15 at 230 VAC up to 4 A, and DC-13 at 24 VDC also up to 4 A. Ideal for engineers looking for dependable safety switches that maintain performance under demanding conditions.

Cable Note	All indications including the conductor ferrules.
Coding Level According to EN ISO 14119	Low
eCl@ss Number, Version 11.0	27-37-12-13
eCl@ss Number, Version 9.0	27-37-12-12
ETIM 6.0	EC000222
ETIM 7.0	EC002593
Gross Weight (g)	30.79
Housing Construction Form	Norm construction design
Maximum Actuating Speed (m/s)	1
Maximum Fuse Rating	6 A gG D-fuse
Maximum Temperature (°C)	80
Minimum Actuating Speed (mm/min)	60
Minimum Ambient Temperature (°C)	-30
Minimum Positive Break Force (N)	19
Minimum Temperature (°C)	-30
Net Weight (g)	67
No. of Auxiliary Contacts	1
No. of Safety Contacts	1
Rated Short-circuit Current (A)	1000
Resistance to Shock (g/ms)	30 / 11
Sensor Height (mm)	84
Sensor Length (mm)	21.5
Switching Element	1 NO contact, 1 NC contacts
Switching Principle	Slow action
Utilisation Category	DC-13 \| AC-15
Utilisation Category DC-13	0.25 A
Wire Cross-Section	0.75 mm
Working Principle	Electromechanical
Brand	SCHMERSAL
Actuator Type	Roller lever
Contact Material	Silver
Degree of Protection	IP67
EAN	4030660000000
Enclosure Coating Material	Painted
Enclosure Material	Glass-fibre, reinforced thermoplastic
Maximum Ambient Temperature (°C)	70
Maximum Cable Cross Section (mm²)	2.5
Minimum Cable Cross Section (mm²)	2 x 0.75
Minimum Mechanical Life	10000000 Operations
Overvoltage Category	3
Rated Impulse Withstand Voltage (kV)	4
Rated Insulation Voltage (V)	250
Series	335
Standards	EN IEC 60947-5-3 / BG-GS-ET-14
Storage Temperature (°C)	-40 to 85
Terminal Type	Screw terminals M20 x 1.5

Position Switches & Sensors

SCHMERSAL Z4V7H335-02Z-2138 POSITION SWITCH 101147045
