Product Code: 101143125

Ensure machine safety with the Schmersal AZ16 Series Safety Switch, designed for reliable operation and robust performance. This safety switch features a durable thermoplastic enclosure and comes equipped with a separate actuator for enhanced security. It includes two safety contacts and lacks auxiliary contacts, ensuring straightforward functionality. The switching element is an opener (NC) type, providing a fail-safe response in critical situations. The switch is fitted with an M12 4-pole connector plug with A-coding for easy and secure electrical connections. It can handle a thermal test current of 10 A and operates efficiently across various utilisation categories: AC-15 at 230 VAC with a 4 A rating, and DC-13 at 24 VDC also with a 4 A rating, accommodating diverse industrial applications. Designed by Schmersal, a leader in machine safety technology, the AZ16 Safety Switch is an essential component for any system requiring dependable protection mechanisms.

Cable Note	All indications including the conductor ferrules.
Coding Level According to EN ISO 14119	Low
eCl@ss Number, Version 11.0	27-37-12-13
eCl@ss Number, Version 9.0	27-37-12-11
ETIM 6.0	EC000223
ETIM 7.0	EC000223
Gross Weight (g)	50
Housing Construction Form	Norm construction design
Maximum Actuating Speed (m/s)	1
Maximum Fuse Rating	6 A gG D-fuse quick blow
Maximum Temperature (°C)	80
Minimum Actuating Speed (mm/min)	10
Minimum Ambient Temperature (°C)	-25
Minimum Positive Break Force (N)	50
Minimum Temperature (°C)	-30
Net Weight (g)	30
No. of Auxiliary Contacts	2
No. of Safety Contacts	1
Rated Short-circuit Current (A)	1000
Resistance to Shock (g/ms)	30 / 11
Sensor Height (mm)	100.5
Sensor Length (mm)	56.5
Switching Element	Opener (NC)
Switching Principle	Slow action
Utilisation Category	DC-13 \| AC-15
Wire Cross-Section	13 AWG
Working Principle	Electromechanical
Brand	SCHMERSAL
Actuator Type	Roller lever H65 and bearing block B2
Contact Material	Silver
Degree of Protection	IP67
EAN	4030660000000
Enclosure Coating Material	Painted
Enclosure Material	Plastic
Height (mm)	98
Maximum Ambient Temperature (°C)	80
Maximum Cable Cross Section (mm²)	1.5
Minimum Cable Cross Section (mm²)	0.75
Minimum Mechanical Life	1000000 Operations
Overvoltage Category	3
Pollution Degree	3
Rated Impulse Withstand Voltage (kV)	2.5
Rated Insulation Voltage (V)	250
Series	AZ16
Standards	EN IEC 60947-5-1
Storage Temperature (°C)	-25 to 70
Terminal Type	Screw terminals M20 x 1.5

Safety Pushbuttons & Operator Devices

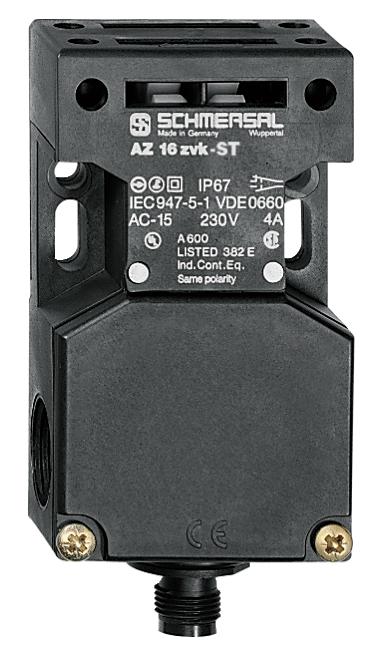

SCHMERSAL AZ16-02ZVRK-ST SAFETY SWITCH WITH SEPARATE ACTUATOR 101143125

Product Code: 101143125
