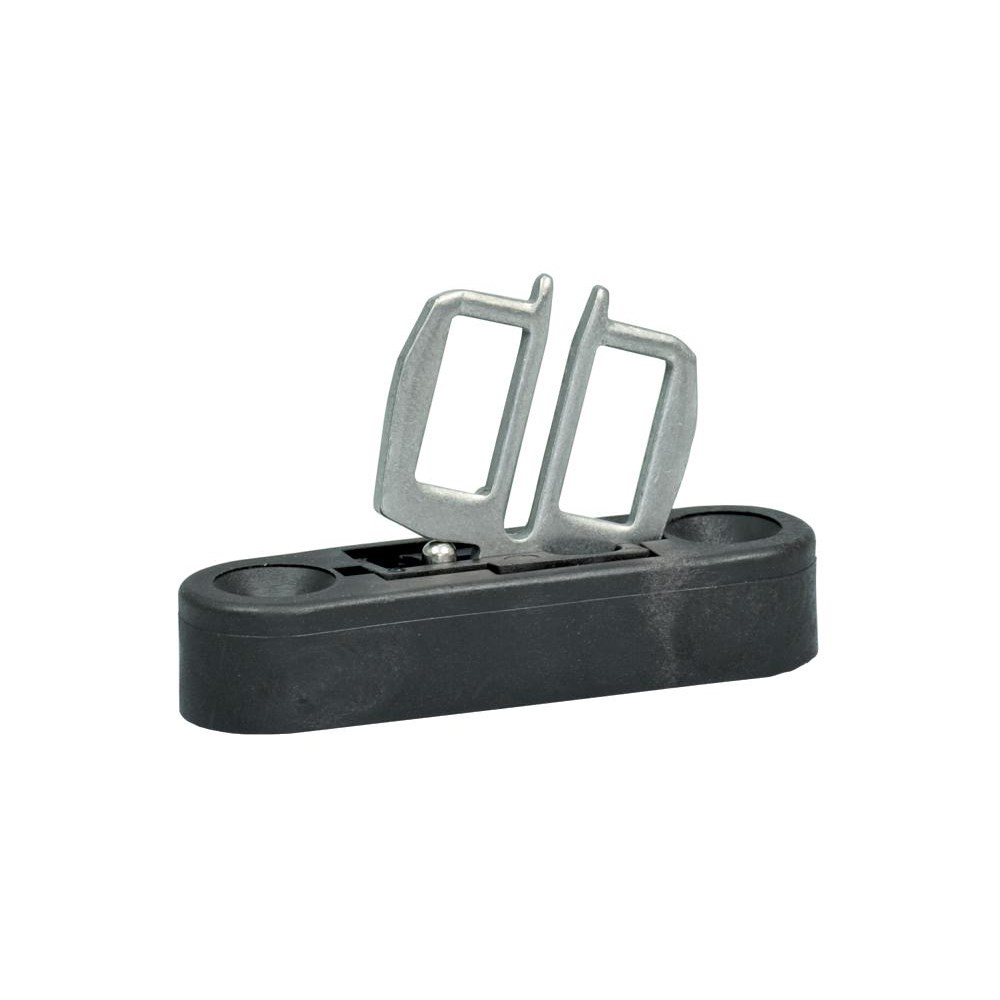

SCHMERSAL AZ 15/16-B6 SAFETY SWITCH WITH SEPARATE ACTUATOR 101137434

Product Code: 101137434

Enhance your machine safety with the Schmersal AZ15/16 series safety switch, featuring a versatile actuator that can be used in both straight and flexible configurations. With an actuating radius of 35 mm, this robust safety switch is designed to seamlessly integrate into various industrial applications, ensuring reliable protection and compliance with safety standards. Trust in the Schmersal brand for dependable machine safeguarding solutions.

Technical Specifications

Cable Note All indications including the conductor ferrules.
Coding Level According to EN ISO 14119 Low
eCl@ss Number, Version 11.0 27-20-10-01
eCl@ss Number, Version 9.0 27-37-12-43
ETIM 6.0 EC000641
ETIM 7.0 EC001487
Gross Weight (g) 40
Housing Construction Form Norm construction design
Maximum Actuating Speed (m/s) 1
Maximum Fuse Rating 6 A gG D-fuse quick blow
Minimum Actuating Speed (mm/min) 4122
Minimum Ambient Temperature (°C) -30
Minimum Positive Break Force (N) 20
Net Weight (g) 36
No. of Auxiliary Contacts 8
No. of Safety Contacts 2
Rated Short-circuit Current (A) 1000
Resistance to Shock (g/ms) 30 / 11
Sensor Height (mm) 121.5
Sensor Length (mm) 30
Switching Element Opener (NC)
Switching Principle Slow action
Utilisation Category DC-13 | AC-15
Utilisation Category DC-13 0.05 A
Wire Cross-Section 0.25 mm
Working Principle Electromechanical
Brand SCHMERSAL
Actuator Type Magnet
Contact Material Silver
Degree of Protection IP67 / IP69K
EAN 4030660000000
Enclosure Coating Material Painted
Enclosure Material Brass
Height (mm) 96
Maximum Ambient Temperature (°C) 70
Maximum Cable Cross Section (mm²) 1.5
Minimum Cable Cross Section (mm²) 0.75
Minimum Mechanical Life 1000000 Operations
Mounting Type A 20 mm screw length usually suffices to mount the sensor. When the mounting plates are used, we recommend 25 mm long screws.
Overvoltage Category 3
Pollution Degree 3
Rated Impulse Withstand Voltage (kV) 4
Rated Insulation Voltage (V) 300
Series AZ15/16
Standards EN IEC 60947-5-1 / EN ISO 13849-1 / BG-GS-ET-15
Storage Temperature (°C) -25 to 85
Terminal Type Connector
Width (mm) 40
