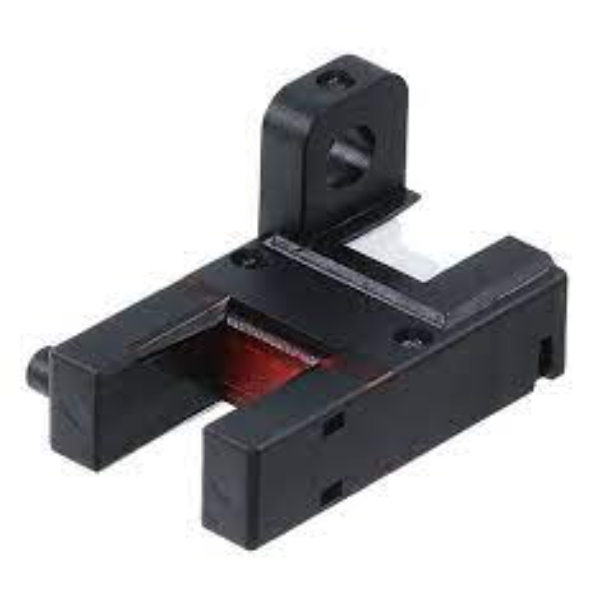

PANASONIC MICRO PHOTOELECTRIC SENSOR PM-R65

Product Code: PM-R65

The Micro Photoelectric Sensor has a 6 mm sensing range and can detect objects as small as 0.8 x 1.2 mm. It operates on a supply voltage of 5 to 24 V DC with a tolerance of ±10%. The current consumption is 15 mA or less. The output is a PNP open-collector transistor, and it has two output options: Light-ON and Dark-ON.

Technical Specifications

Current Consumption (mA) 15 or less
Output Operation Light-ON/Dark-ON
Sensing Range (mm) 6
Brand PANASONIC
Ambient Temperature Range (°C) –25 to +55
Degree of Protection IP40
Material Body-PBT, Display section-Polycarbonate
Operating State/Fault Indication Operation - Orange LED
Outputs NPN open-collector transistor
Pollution Degree 3
Rated Supply Voltage DC (V) 5 - 24
Type R, Compact / Connector built-in type
Weight (kg) 0.003
