Current Consumption (mA)	<25
Gross Weight (g)	80
Net Weight (g)	55
Operation Indicator	Orange LED (indicaties when output = ON)
Output Operation	Switchable either Light-ON or Dark-ON
Relative Humidity	35 to 85%
Resistance to Shock (m/s²)	500
Response Time (ms)	<0.5
Sensing Range (mm)	500
Withstand Voltage AC (V)	1000 for 1 minute
Brand	PANASONIC
Illuminance (lx)	3000
Ambient Temperature (°C)	-25 to +55
Cable Cross Section (mm²)	0.2
Cable Length (m)	2
Cable Type	3 core cabtyre
Degree of Protection	IP67
Dimensions (mm)	10W x 14.5H x 3.5D
Enclosure Material	Polyarylate
Insulation Resistance (MO)	20
Outputs	NPN
Pollution Degree	3 (Industrial Environment)
Rated Supply Voltage DC (V)	12 to 24
Sensor Type	Stardard Thru-Beam Front Sensing with operation mode switch on the bifurcation
Storage Temperature (°C)	-30 to +70
Utilization Category	DC-12 or DC-13

Position Switches & Sensors

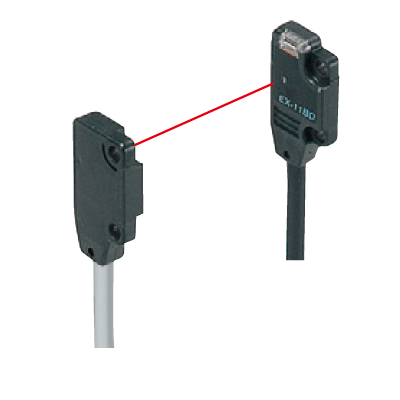

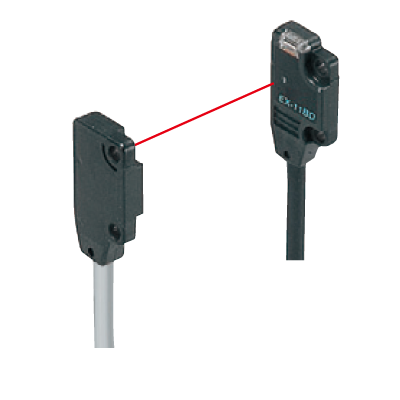

PANASONIC ULTRA-SLIM PHOTOELECTRIC SENSOR EX-17
