Current Consumption (mA)	<20
Emitting Element	Red
Gross Weight (g)	65
Mounting Method	Bracket (not included)
Net Weight (g)	55
Operation Indicator	Orange LED - indicates when Output is ON
Output Operation	Switchable - Detection-ON or Detection-OFF
Relative Humidity	35 to 85%
Resistance to Shock (m/s²)	500
Response Time (ms)	<1
Sensing Range (mm)	15 to 100
Withstand Voltage AC (V)	1000 for 1 min
Brand	PANASONIC
Illuminance (lx)	<3000
Ambient Temperature (°C)	-25 to +55
Cable Cross Section (mm²)	0.2
Cable Length (m)	2
Cable Type	4-core cabtyre cable
Degree of Protection	IP67
Enclosure Material	PBT
Insulation Resistance (MO)	2
Rated Supply Voltage DC (V)	12 - 24
Sensor Type	Adjustable range reflective
Storage Temperature (°C)	-30 to +70

Position Switches & Sensors

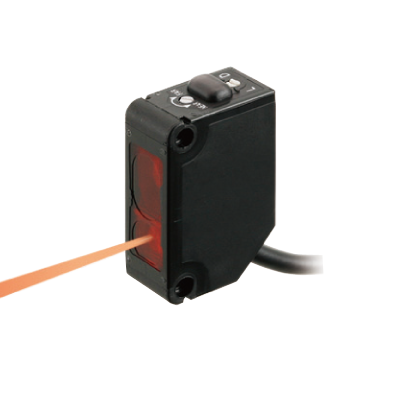

PANASONIC COMPACT PHOTOELECTRIC SENSOR CX-444
