Current Consumption (mA)	<13
Emitting Element	Infrared
Gross Weight (g)	60
Mounting Method	Bracket (not included)
Net Weight (g)	50
Operation Indicator	Orange LED - indicates when Output is ON
Output Operation	Switchable - Light-ON or Dark-ON
Relative Humidity	35 to 85%
Resistance to Shock (m/s²)	500
Response Time (ms)	<1
Sensing Range (mm)	300
Withstand Voltage AC (V)	1000 for 1 min
Brand	PANASONIC
Illuminance (lx)	<3000
Ambient Temperature (°C)	-25 to +55
Cable Cross Section (mm²)	0.2
Cable Length (m)	2
Cable Type	2-core cabtyre cable
Degree of Protection	IP67
Enclosure Material	PBT
Insulation Resistance (MO)	2
Rated Supply Voltage DC (V)	12 - 24
Sensor Type	Diffuse Reflective
Storage Temperature (°C)	-30 to +70

Position Switches & Sensors

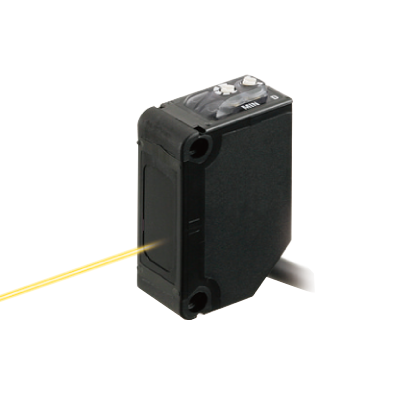

PANASONIC COMPACT PHOTOELECTRIC SENSOR CX-421-P-J
