Product Code: TA200DU-135

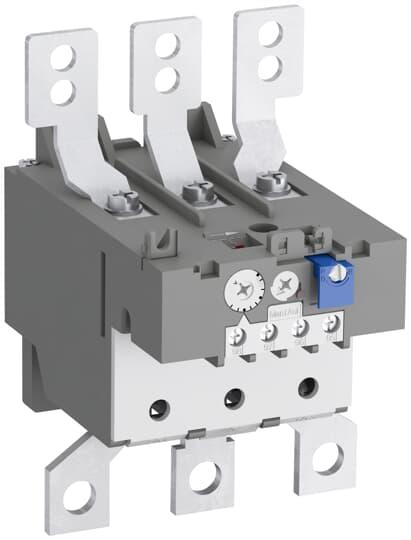

The TA200DU-135 thermal overload relay is an economic electromechanical protection device for the main circuit. It offers reliable and fast protection for motors in the event of overload or phase failure. The device has trip class 10A. Further features are the temperature compensation, trip contact (NC), signal contact (NO), automatic- or manual reset selectable, trip-free mechanism, STOP- and Test function and a trip indication. The overload relays are connected directly to the block contactors. Single mounting kits are available as accessory.

Current Setting Range (A)	100
Main Circuit Electrical Connection	Screw Connection
No. of Auxiliary Change-over Contacts	1
No. of Normally-closed Auxiliary Contacts	1
No. of Normally-open Auxiliary Contacts	1
Release Class	Class 10 A
Reset Function	Automatic
Brand	ABB
Auxiliary Contacts	1NO/1NC
Degree of Protection	IP20 (Housing)
Dimensions (mm)	104W x 151H x 126D
Maximum Operational Voltage AC (V)	690
Mounting Type	Direct Attachment
No. of Poles	3
Pollution Degree	3
Power Loss (W)	3.3/pole
Rated Frequency (Hz)	50/60
Rated Impulse Withstand Voltage (kV)	6
Rated Insulation Voltage (V)	690
Rated Operational Voltage AC (V)	690
Short-Circuit Protective Device	224A, fuse type gG / 200A aM
Suitable For	AF190, AF205
Thermal Current Setting Range (A)	100 - 135
Trip Class	10
