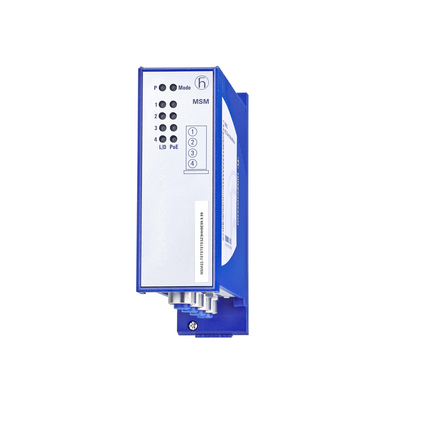

HIRSCHMANN MEDIA MODULE FOR MICE MSM20-S2T1T1T1SZ9HH9E99.9 942 077-999-004

Product Code: 942 077-999-004

Enhance your network's performance with Hirschmann's MSM Series Switch Modules, designed for the sophisticated demands of modern networking. These managed modular MICE switch power media modules are equipped with Fast Ethernet ports to ensure reliable data transmission. The first port type features a Singlemode FX DSC interface supporting 100 Mbit/s, while ports two through four offer versatile Twisted Pair (TX)/RJ45 connections with speeds ranging from 10/100/1000 Mbit/s. Built to operate in diverse environments, these modules can withstand temperatures from 0°C to +60°C. Compliance with CE, FCC, and EN 61131 (EN 60950) standards attests to their quality and safety. Choose Hirschmann for your network solutions and trust in the robustness and efficiency of the MSM Series Switch Modules.

Technical Specifications

Maximum Temperature (°C) 60
Minimum Temperature (°C) 0
No. of 100Mb Ports 1
No. of 1GB Ports 3
No. of Ethernet Ports 3
No. of Fiber Ports 1
Nominal Power (W) 5
Rated Maximum Operational Voltage DC (V) 48
Rated Minimum Operational Voltage DC (V) 24
Brand HIRSCHMANN
Degree of Protection IP30
Mounting Type DIN Rail
Series MSM
