Maximum Breaking Capacity	3kA at 580/1000V
Voltage Type	AC
Brand	ABB
Curve Type	K
Degree of Protection	IP20
Dimensions (mm)	27W x 142H x 82.5D
Housing Material	Insulation group I, RAL 7035
Mounting Type	DIN Rail
No. of Poles	1
Rated Current (A)	80
Rated Frequency (Hz)	50
Rated Impulse Withstand Voltage (kV)	8
Series	S800HV
Standards and Approvals	IEC/EN 60947-2 UL 1077

DIN MCB

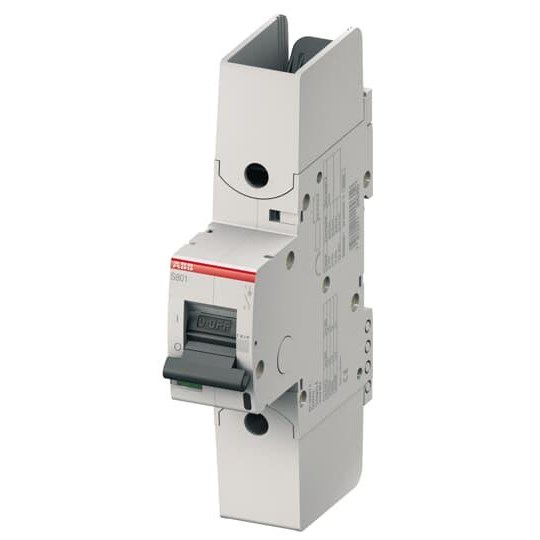

ABB MCB 1000V 1P 80A 4KA S801HVK80
