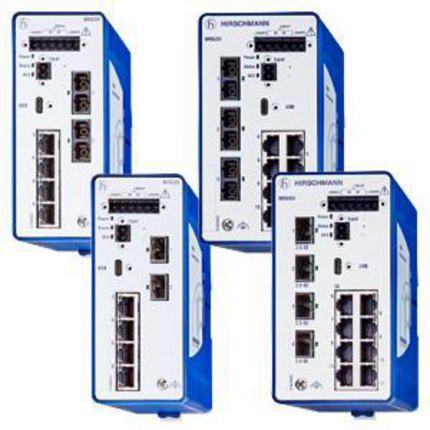

HIRSCHMANN MANAGED SWITCH BRS20-08009999-STCV99HHSES 942 170-999-007

Product Code: 942 170-999-007

Discover the robust Hirschmann BOBCAT Series Managed Industrial Switch, designed for optimal network performance and reliability. This Fast Ethernet switch features 8x 10/100BASE-TX ports with RJ45 connectors, ensuring efficient data transfer and connectivity. Engineered for demanding environments, it operates within a temperature range of 0 to +60°C and is protected by an IP30-rated enclosure. Installation is made easy with DIN Rail mounting, and dual power inputs ranging from 12 VDC to 24 VDC provide flexible power options while maintaining a low energy consumption of just 6W. Ideal for various industrial applications, this switch is a key component in any resilient network solution.

Technical Specifications

Maximum Temperature (°C) 60
Minimum Temperature (°C) 0
No. of 100Mb Ports 8
No. of Ethernet Ports 8
Nominal Power (W) 6
Rated Maximum Operational Voltage DC (V) 24
Rated Minimum Operational Voltage DC (V) 12
Brand HIRSCHMANN
Degree of Protection IP30
Mounting Type DIN Rail
Series BOBCAT
