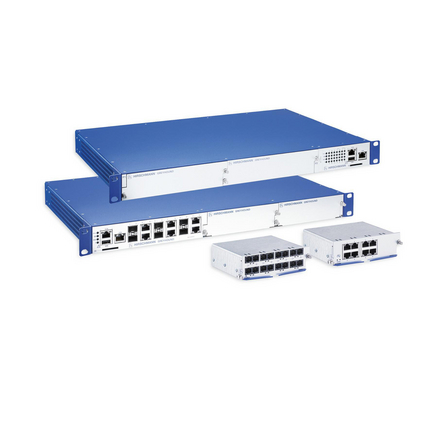

HIRSCHMANN MANAGED RACKMOUNT SWITCH GRS1042-AT2ZEHH00V9HHSE2A99 942 135-999-010

Product Code: 942 135-999-010

Explore the Hirschmann GRS1042, a robust modular managed rackmount switch designed for complex network solutions. This switch offers versatility with up to 28 ports, starting with a solid base of 12 fixed ports that include 2 GE/2.5 GE SFP slots and 10 FE/GE TX ports. Expandability is at your fingertips with two media module slots, each supporting an additional 8 FE/GE ports. Engineered for challenging environments, it features a conformal coating suitable for temperatures ranging from -40°C to +70°C. The GRS1042 ensures reliable power supply compatibility with inputs ranging from 60 to 250 V DC and 110 to 240 V AC. Equipped with HiOS Layer 2 Advanced software, it delivers sophisticated networking capabilities. Compliance with industry standards is guaranteed as the switch meets CE, FCC, EN 61131, EN 60950, IEC 61850-3, and IEEE 1613 certifications making it ideal for substation applications. Trust in Hirschmann's commitment to quality and performance for your network infrastructure needs.

Technical Specifications

Maximum Temperature (°C) 70
Minimum Temperature (°C) -40
No. of 1GB Ports 26
No. of 2.5GB Ports 2
No. of Ethernet Ports 10
No. of Fiber Ports 18
Nominal Power (W) 32
Rated Maximum Operational Voltage AC (V) 240
Rated Maximum Operational Voltage DC (V) 250
Rated Minimum Operational Voltage AC (V) 110
Rated Minimum Operational Voltage DC (V) 60
Brand HIRSCHMANN
Degree of Protection IP30
Mounting Type Rack
Series GRS1042
Standards and Approvals IEC 61850-3
