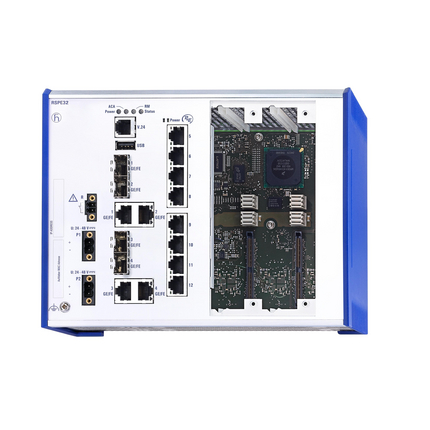

HIRSCHMANN MANAGED DIN RAIL SWITCH RSPE30-24044O7T99SCCZ999HHSE2A 942 084-999-004

Product Code: 942 084-999-004

The Hirschmann RSP Series Managed Switch is a robust network solution designed to cater to demanding industrial environments. This switch offers a versatile configuration with 24 Fast Ethernet ports and 4 Gigabit Ethernet ports, supporting both twisted pair and fiber optic cables through SFP modules. It operates reliably with dual power inputs ranging from 24 to 60 V DC and can withstand temperatures from 0°C to +60°C. Equipped with HiOS Layer 2 Standard software, it ensures efficient network management and security. The RSP Series switch meets stringent industry standards, holding CE, FCC, and EU Safety approvals, making it a trustworthy addition to any sophisticated network infrastructure.

Technical Specifications

Maximum Temperature (°C) 60
Minimum Temperature (°C) 0
No. of 100Mb Ports 24
No. of 1GB Ports 4
No. of Ethernet Ports 12
No. of Fiber Ports 16
Nominal Power (W) 16
Rated Maximum Operational Voltage DC (V) 60
Rated Minimum Operational Voltage DC (V) 24
Brand HIRSCHMANN
Degree of Protection IP30
Mounting Type DIN Rail
Series RSP
