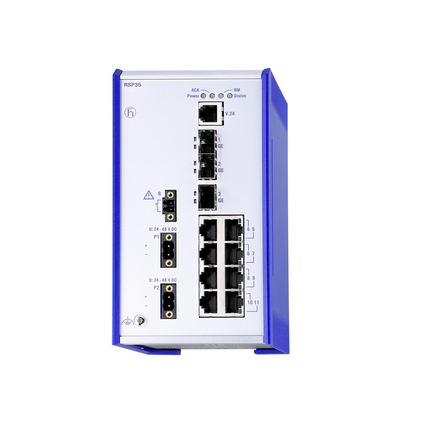

HIRSCHMANN MANAGED DIN RAIL SWITCH RSP35-08033O6ZT-TK9Z9HHE2A 942 053-999-020

Product Code: 942 053-999-020

Discover the robust Hirschmann RSP Series Managed Industrial Ethernet Switch, designed to optimize network performance with its 11 versatile ports. This switch features 8 RJ45 twisted pair ports supporting speeds up to 100 Mbit/s and 3 SFP slots for fiber connectivity at a fast 1000 Mbit/s. Engineered for reliability in extreme environments, it operates flawlessly within a temperature range of -40°C to +70°C and accommodates a wide power input from 48 V to 320 V DC and 88 to 265 V AC. The switch is equipped with High-availability Seamless Redundancy (HSR) for uninterrupted data communication and runs on HiOS Layer 2 Advanced software, ensuring sophisticated network management. Compliance with CE, FCC, and EN 61131 standards underscores its quality assurance. Ideal for industrial settings requiring durable network solutions, the Hirschmann RSP switch is a testament to high-performance networking.

Technical Specifications

Maximum Temperature (°C) 70
Minimum Temperature (°C) -40
No. of 100Mb Ports 4
No. of 1GB Ports 3
No. of Ethernet Ports 4
No. of Fiber Ports 7
Nominal Power (W) 22
Rated Maximum Operational Voltage AC (V) 265
Rated Maximum Operational Voltage DC (V) 320
Rated Minimum Operational Voltage AC (V) 88
Rated Minimum Operational Voltage DC (V) 48
Brand HIRSCHMANN
Degree of Protection IP30
Mounting Type DIN Rail
Series RSP
