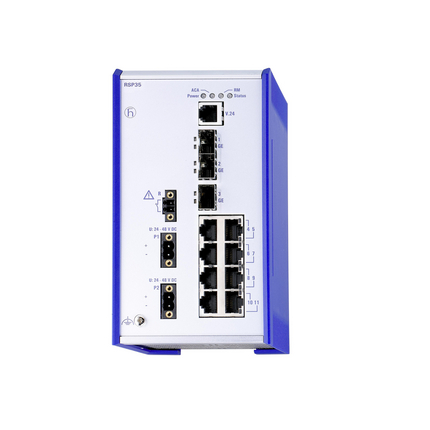

HIRSCHMANN MANAGED DIN RAIL SWITCH RSP35-08033O6ZT-SK9V9HME2S 942 053-999-019

Product Code: 942 053-999-019

Explore the robust Hirschmann RSP Series Managed Industrial Ethernet Switch, designed to streamline your network's performance with its 11 versatile ports. This switch features 8 RJ45 twisted pair ports supporting 10/100 Mbit/s and 3 SFP slots for fiber connections at a fast 1000 Mbit/s. Engineered for reliability in demanding environments, it operates flawlessly within a wide power range of 48 V to 320 V DC and 88 to 265 V AC, and maintains stability in temperatures ranging from 0°C to +60°C. The switch is equipped with Fast MRP for swift recovery times and HiOS Layer 2 Standard software, ensuring efficient data handling. Compliance with industry standards such as CE, FCC, EN 61131, IEC 61850, and IEEE 1613 marks this device as suitable for critical applications. Trust in the quality that comes with the Hirschmann brand for your network solutions in switches.

Technical Specifications

Maximum Temperature (°C) 60
Minimum Temperature (°C) 0
No. of 100Mb Ports 4
No. of 1GB Ports 3
No. of Ethernet Ports 4
No. of Fiber Ports 7
Nominal Power (W) 22
Rated Maximum Operational Voltage AC (V) 265
Rated Maximum Operational Voltage DC (V) 320
Rated Minimum Operational Voltage AC (V) 88
Rated Minimum Operational Voltage DC (V) 48
Brand HIRSCHMANN
Degree of Protection IP30
Mounting Type DIN Rail
Series RSP
