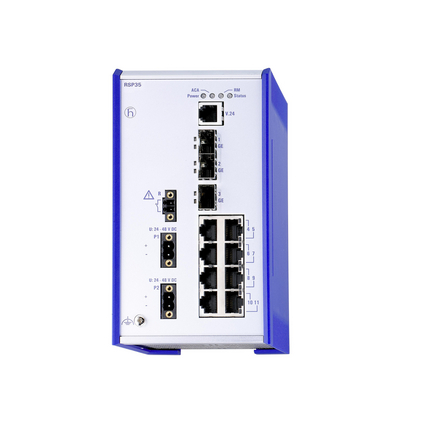

HIRSCHMANN MANAGED DIN RAIL SWITCH RSP35-08033O6TT-SKKV9HDE2A 942 053-999-014

Product Code: 942 053-999-014

Explore the robust Hirschmann RSP Series Managed Industrial Ethernet Switch, designed to enhance network performance with its 11 versatile ports. This switch features 8 RJ45 twisted pair ports supporting 10/100 Mbit/s and 3 SFP slots for fiber connections at a speed of 1000 Mbit/s. Engineered for reliability in demanding environments, it operates efficiently across a wide power range from 48 V to 320 V DC and 88 to 265 V AC, and withstands temperatures from 0°C to +60°C. The RSP series comes equipped with DLR (Device Level Ring) for network resilience and HiOS Layer 2 Advanced software for sophisticated management. Compliance with industry standards is assured with CE, FCC, EN 61131, IEC 61850, and IEEE 1613 approvals. Ideal for engineers seeking high-performance network solutions in industrial settings.

Technical Specifications

Maximum Temperature (°C) 60
Minimum Temperature (°C) 0
No. of 100Mb Ports 8
No. of 1GB Ports 3
No. of Ethernet Ports 8
No. of Fiber Ports 3
Nominal Power (W) 19
Rated Maximum Operational Voltage AC (V) 265
Rated Maximum Operational Voltage DC (V) 320
Rated Minimum Operational Voltage AC (V) 88
Rated Minimum Operational Voltage DC (V) 48
Brand HIRSCHMANN
Degree of Protection IP30
Mounting Type DIN Rail
Series RSP
