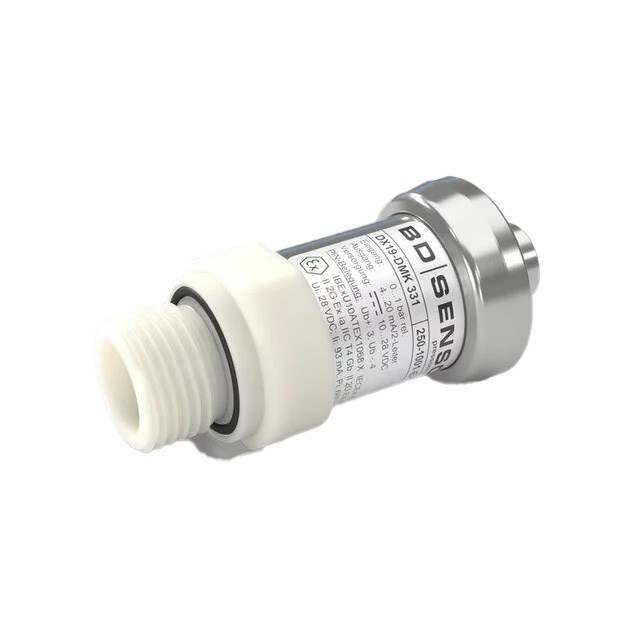

BD SENSORS DMK331 INDUSTRIAL PRESSURE TRA 2501002151001001B2000

Product Code: 2501002151001001B2000

DMK 331

Technical Specifications

Diaphragm Material Ceramics Al2O3 96 %
Electrical Connection Male and female plug ISO 4400
Electrical Protection Short-circuit protection: Permanent, Reverse polarity protection: No damage, but also no function, Electromagnetic compatibility: emission and immunity according to EN 61326.
Input Pressure (bar) 10
Mechanical Connection G1/2" DIN 3852 (Metric threads and others on request)
Mechanical Stability Vibration: 10 g RMS (25 ... 2000 Hz) according to DIN EN 60068-2-6. Shock: 500 g / 1 msec according to DIN EN 60068-2-27.
Operational Life 100 million load cycles
Output Signal 4 … 20 mA / 2-wire
Permissible Temperatures Medium: -40 ... 125 °C Electronics / Environment: -40 ... 85 °C Storage: -40 ... 100 °C
Pressure Port PVDF (PVDF only with G1/2" DIN 3852 open pressure port (up to 60 bar); permissible medium temperature: -30 … 60 °C)
Product Series DMK 331
Response Time (ms) ≤ 10
Seals FKM
Brand BD SENSORS
Accuracy 0.5 % FSO
Application Plant and machine engineering. Energy industry. Environmental engineering (water - sewage - recycling). Medical technology (Specially for oxygen application).
Version Standard
