Product Code: EF460-500

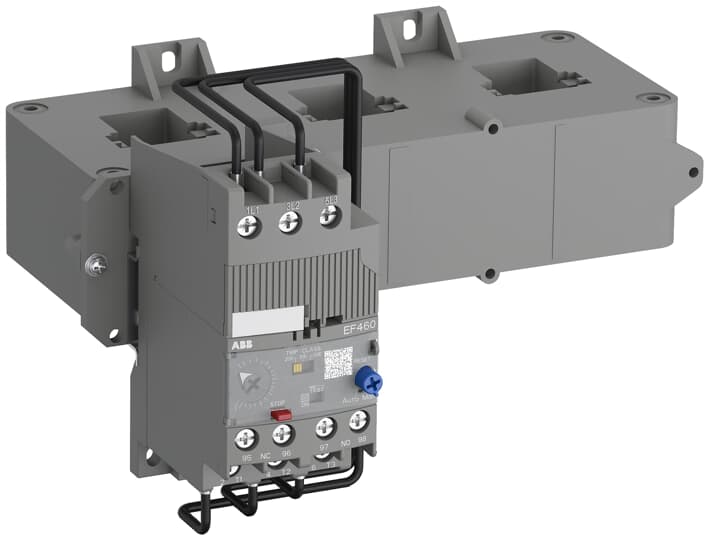

The EF460-500 is an self-supplied electronic overload relay, which means no extra external supply is needed. It offers reliable and fast protection for motors in the event of overload or phase failure. Easy to use like a thermal overload relay and compatible with standard motor applications, the electronic overload relay is convincing, above all, due to its wide setting range, high accuracy, high operational temperature range and the possibility to select a trip class (10E, 20E, 30E). Further features are the temperature compensation, trip contact (NC), signal contact (NO), automatic- or manual reset selectable, trip-free mechanism, STOP- and Test function and a trip indication. EF460 has ATEX and IECEx certification.

No. of Normally-closed Auxiliary Contacts	1
No. of Normally-open Auxiliary Contacts	1
No. of Protected Poles	3
Rated Operational Current (A)	500
Rated Operational Current AC-15 400V (A)	1.1
Rated Operational Current AC-15 500V (A)	0.75
Rated Operational Current DC-13 125V (A)	0.5
Rated Operational Current DC-13 24V (A)	1.5
Rated Operational Current DC-13 250V (A)	0.27
Rated Operational Current DC-13 60V (A)	0.55
Setting Range	150 - 500
Brand	ABB
Degree of Protection	Housing: IP20
Dimensions (mm)	186W x 103.5H x 152.13D
No. of Poles	3
Operational Temperature Range (°C)	-25 to 70
Power Loss (W)	0.005 - 0.054W per Pole
Rated Impulse Withstand Voltage (kV)	Auxiliary Circuit: 6kV Main Circuit: 8kV
Rated Insulation Voltage (V)	1000
Rated Operational Current AC-15 240V (A)	3
Rated Operational Voltage AC/DC (V)	Auxiliary Circuit: 600V AC/DC Main Circuit: 1000V AC
Standards and Approvals	IEC/EN 60947-1, IEC/EN 60947-4-1, IEC/EN 60947-5-1, UL 60947-1, UL 60947-4-1
Storage Temperature Range (°C)	-25 to 70
Suitable For	AF400, AF460
Weight (kg)	1.182
