Design of Control Element	Push Button
Interlockable	Yes
Main Circuit Electrical Connection	Bolt Connection
Brand	ABB
AC Voltage (V)	690
Breaking Capacity (kA)	100 @415V AC
Breaking Capacity 415V AC - Icu (kA)	100
Component Type	Withdrawable
Current Rating (A)	6300
Degree of Protection	IP30
Dimensions (mm)	803W x 425H x 383D
EAN	8015644773625
Frame	E6.2
Icw (kA/1s) - Short-time Withstand Current Rating	100
Iu - Uninterrupted Current Rating (A)	6300
Maximum Operational Voltage AC (V)	690
No. of Poles	3
Poles	3P
Power Loss (W)	1550
Rated Current (A)	6300
Rated Impulse Withstand Voltage (kV)	12
Rated Insulation Voltage AC (V)	1000
Rated Operational Current AC-21A 415V (A)	6300
Rated Operational Current AC-23A 380-415V (A)	6300
Rated Operational Voltage AC (V)	690
Rated Short-Time Withstand Current - Icw (kA)	100
Rated Short-time Withstand Current - Icw (kA/1s)	100
Rated Uninterrupted Current - Iu (A)	6300
Size of Frame	E6.2
Standards and Approvals	IEC
Suitable For	Distribution Board Installation
Type	Main Switch
Version	Withdrawable

Air Circuit Breakers

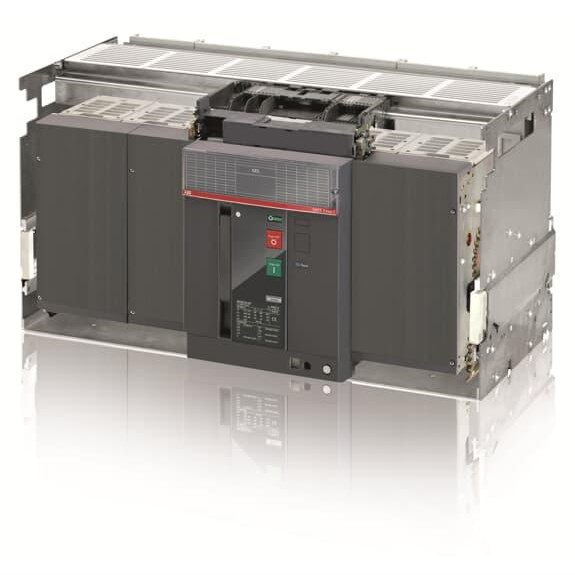

ABB E6.2H/MS 6300 3P WMP 1SDA073512R1
