Design of Control Element	Push Button
Interlockable	Yes
Main Circuit Electrical Connection	Bolt Connection
Brand	ABB
AC Voltage (V)	690
Breaking Capacity (kA)	100 @415V AC
Breaking Capacity 415V AC - Icu (kA)	100
Component Type	Fixed
Current Rating (A)	4000
Degree of Protection	IP30
Dimensions (mm)	510W x 371H x 270D
EAN	8015644773113
Frame	E4.2
Icw (kA/1s) - Short-time Withstand Current Rating	85
Iu - Uninterrupted Current Rating (A)	4000
Maximum Operational Voltage AC (V)	690
No. of Poles	4
Poles	4P
Power Loss (W)	465
Rated Current (A)	4000
Rated Impulse Withstand Voltage (kV)	12
Rated Insulation Voltage AC (V)	1000
Rated Operational Current AC-21A 415V (A)	4000
Rated Operational Current AC-23A 380-415V (A)	4000
Rated Operational Voltage AC (V)	690
Rated Short-Time Withstand Current - Icw (kA)	85
Rated Short-time Withstand Current - Icw (kA/1s)	85
Rated Uninterrupted Current - Iu (A)	4000
Size of Frame	E4.2
Standards and Approvals	IEC
Suitable For	Distribution Board Installation
Terminal Type	HR
Type	Main Switch
Version	Fixed

Air Circuit Breakers

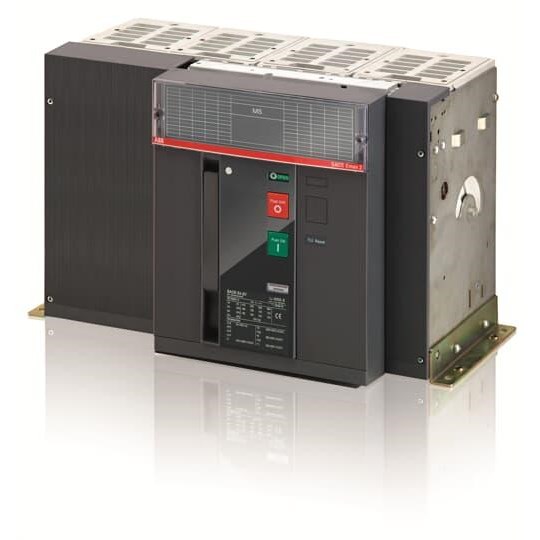

ABB E4.2H/MS 4000 4P F HR 1SDA073461R1
