IPD E43L72XT4250 DB 72P IP43 GREY , XT4 MCCB MAIN SWITCH

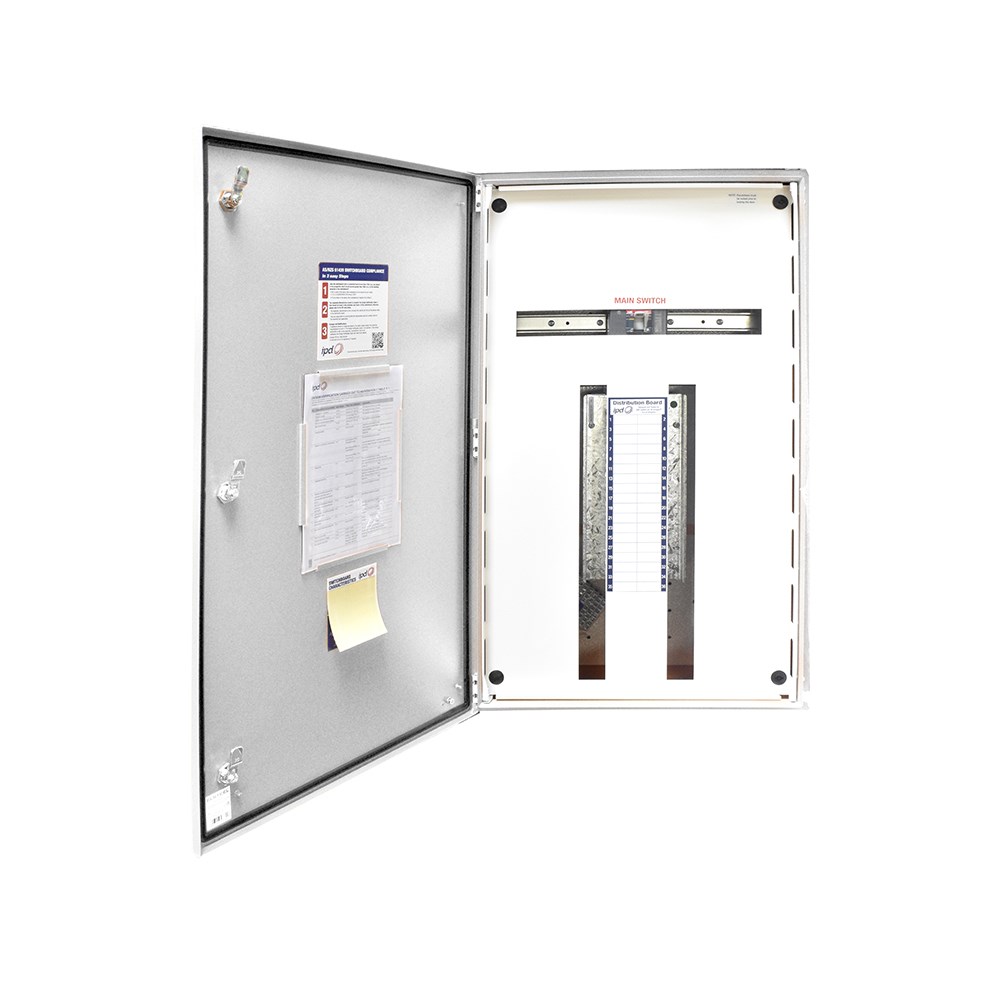

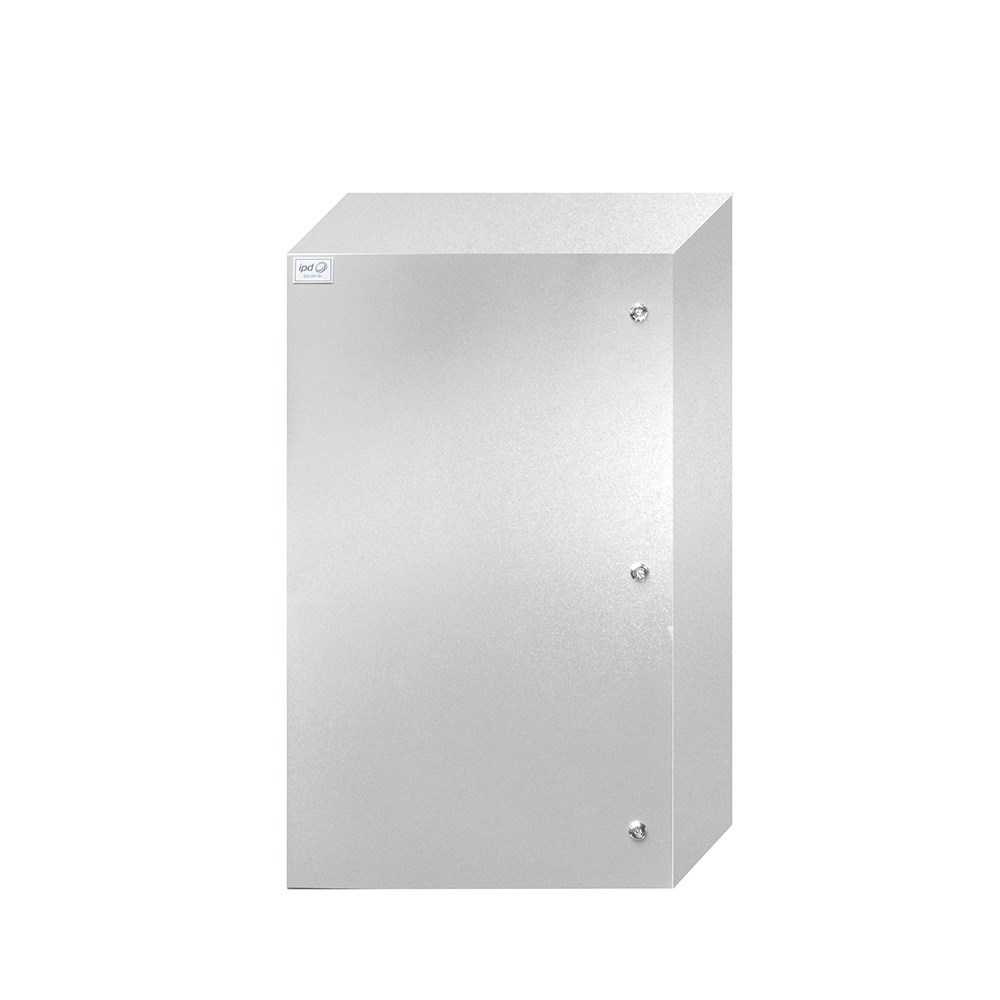

Evolution distribution boards are specifically designed for use with System pro M S200 range protection devices. These boards are constructed from 1.0mm and 1.2mm thick Mild Steel in a RAL7035 grey colour. They have an IP43 rating, which means they are suitable for indoor applications such as being installed inside an electrical cupboard, switch room, or mounted on an internal wall. The enclosure of the distribution board includes several features to ensure functionality and security. It comes with a 250A XT4 MCCB (Molded Case Circuit Breaker) for effective circuit protection. The enclosure also has a full gland plate at the top and bottom, providing convenient cable entry points. Additionally, it is equipped with a 72P encapsulated chassis for added durability. To ensure proper access control, the distribution board is fitted with metal locks and a hinged escutcheon. This allows authorized personnel to easily open and close the enclosure when necessary. In terms of dimensions, the Evolution distribution board measures 1200mm in height, 600mm in width, and has a depth of 200mm. Overall, the Evolution distribution board offers reliable protection and organization for System pro M S200 range devices in various indoor applications. Its sturdy construction and convenient features make it a suitable choice for engineers seeking efficient electrical solutions.
