Evolution Distribution Boards

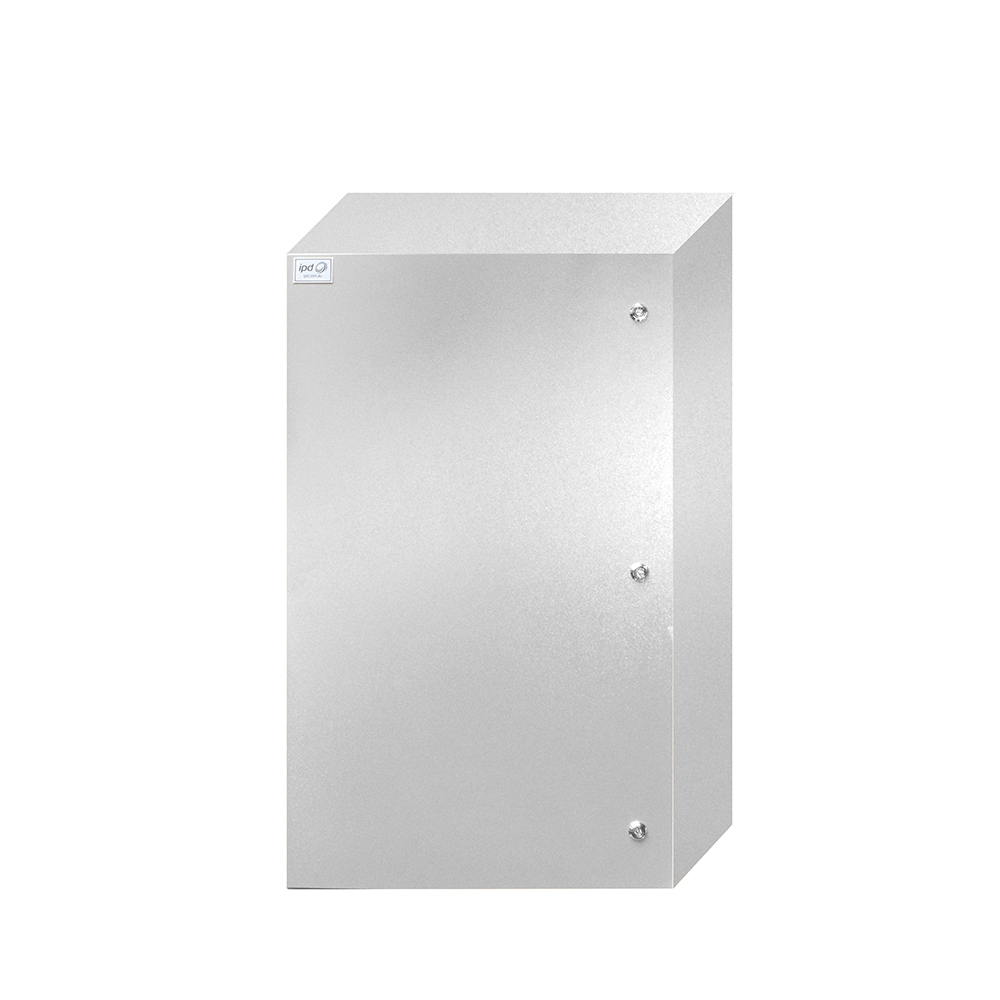

IPD E65L12XT4250 DB 12P IP65 GREY , XT4 MCCB MAIN SWITCH

Product Code: E65L12XT4250

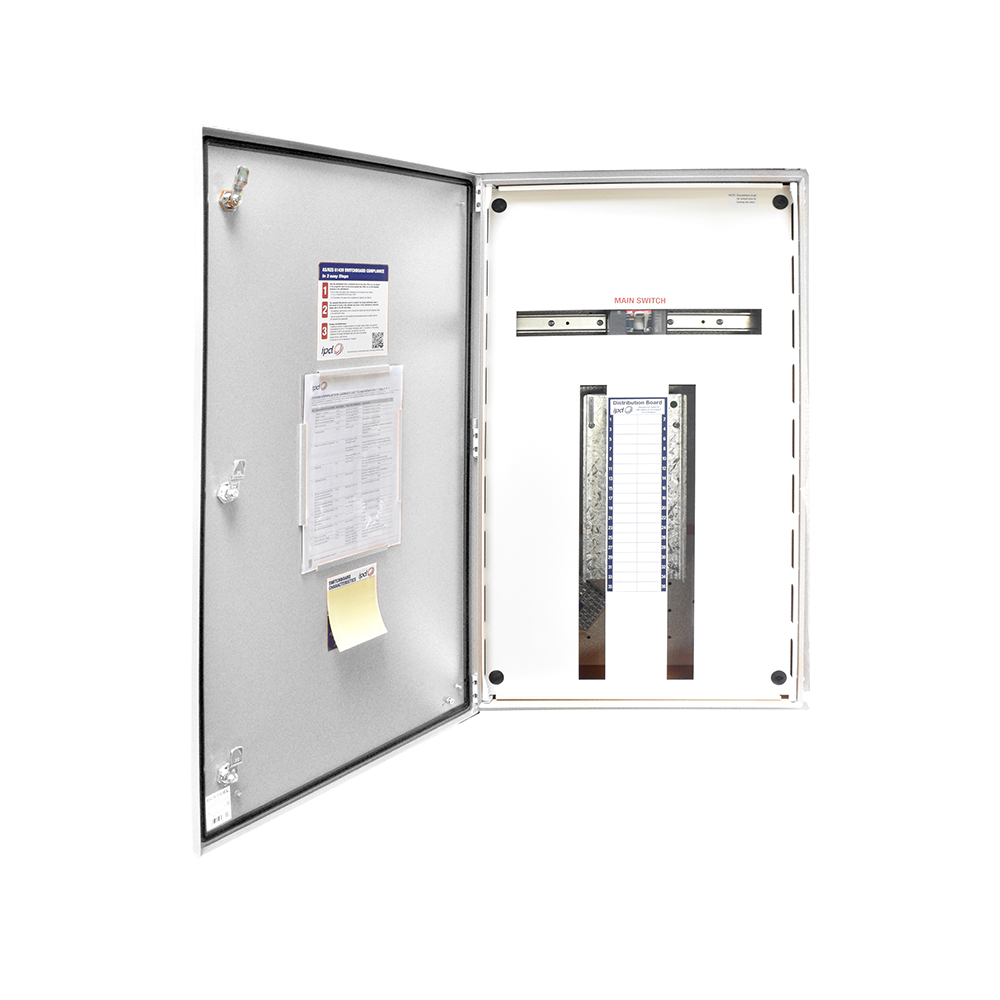

Evolution distribution boards are specifically designed for System pro M S200 range protection devices. These boards are constructed using 1.6mm Mild Steel in RAL7035 grey colour. They have an IP65 rating, making them suitable for outdoor applications. The enclosure of the board includes XT4N 250A MCCB, Full Gland Plate Top & Bottom, a 12P encapsulated chassis, metal locks, and a hinged escutcheon. The dimensions of the board are 800H X 600W X 200Dmm.

Technical Specifications

Brand IPD
Colour Grey, RAL7035
Degree of Protection IP65
Dimensions (mm) 800H x 600W x 200D
DIN Accessory Spaces 18
Material Mild Steel
No. of Locks 2
No. of Poles 12P
Rated Current of Main Switch (A) 250
Type of Main Switch XT4 MCCB
