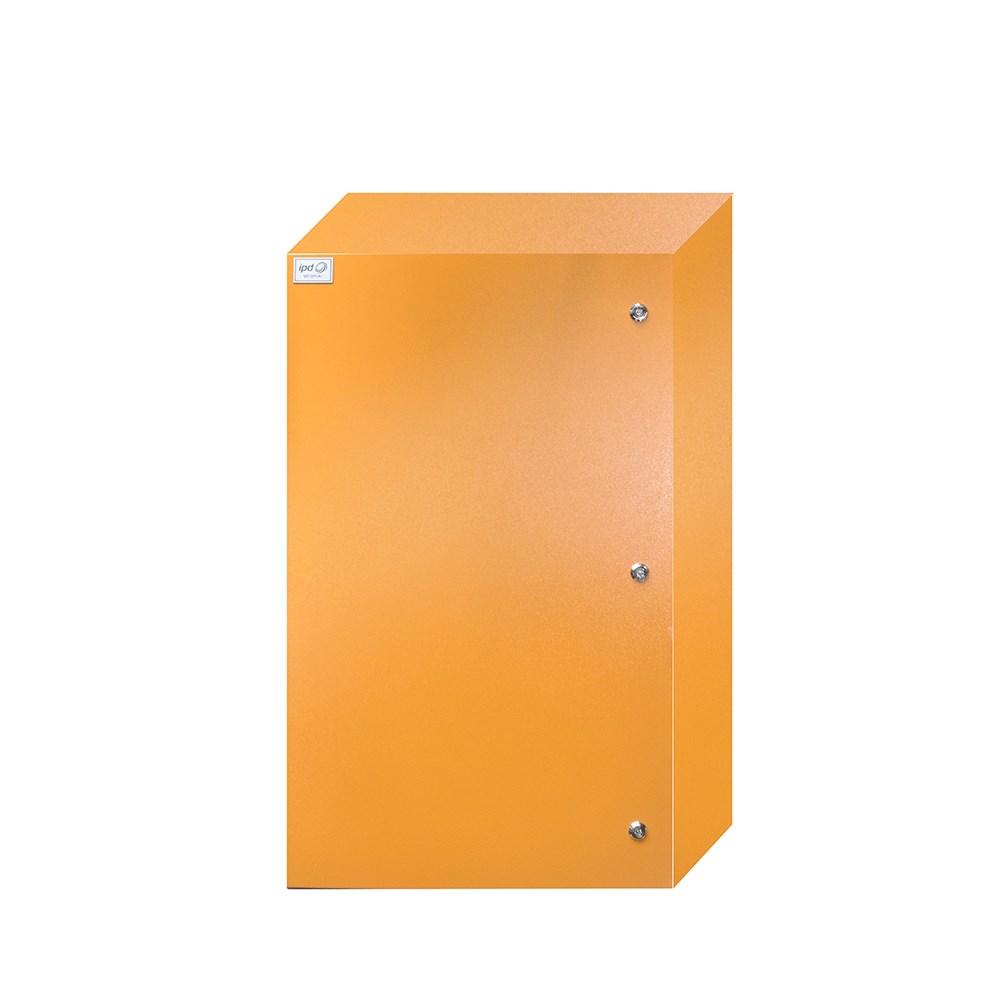

IPD E43A12XT4250 DB 12P IP43 ORANGE , XT4 MCCB MAIN SWITCH

Product Code: E43A12XT4250

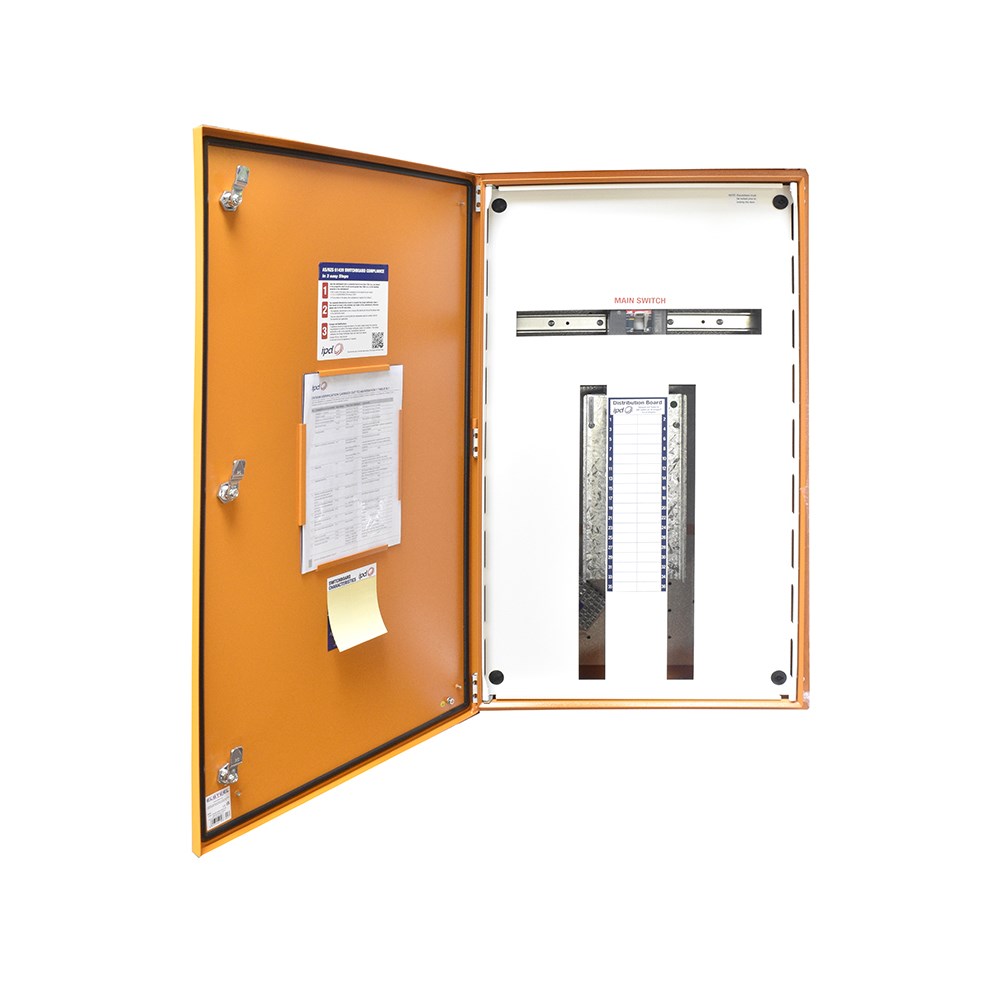

Evolution distribution boards are designed for System pro M S200 range protection devices, made from 1.0mm & 1.2mm Mild Steel RAL2000 orange. IP43 suitable for indoor applications, such as inside an electrical cupboard, switch room or mounted on an internal wall. Enclosure comes with 250A XT4 MCCB, Full Gland Plate Top & Bottom, 12P encapsulated chassis, Metal locks and Hinged Escutcheon. Size: 800H X 600W X 200Dmm.

Technical Specifications

Brand IPD
Colour Orange, RAL2000
Degree of Protection IP43
Dimensions (mm) 800H x 600W x 200D
DIN Accessory Spaces 18
Material Mild Steel
No. of Locks 2
No. of Poles 12P
Rated Current of Main Switch (A) 250
Type of Main Switch XT4 MCCB
