Evolution Distribution Boards

IPD E43L12D400 DB 12P IP43 GREY WITH NON-AUTO MCCB

Product Code: E43L12D400

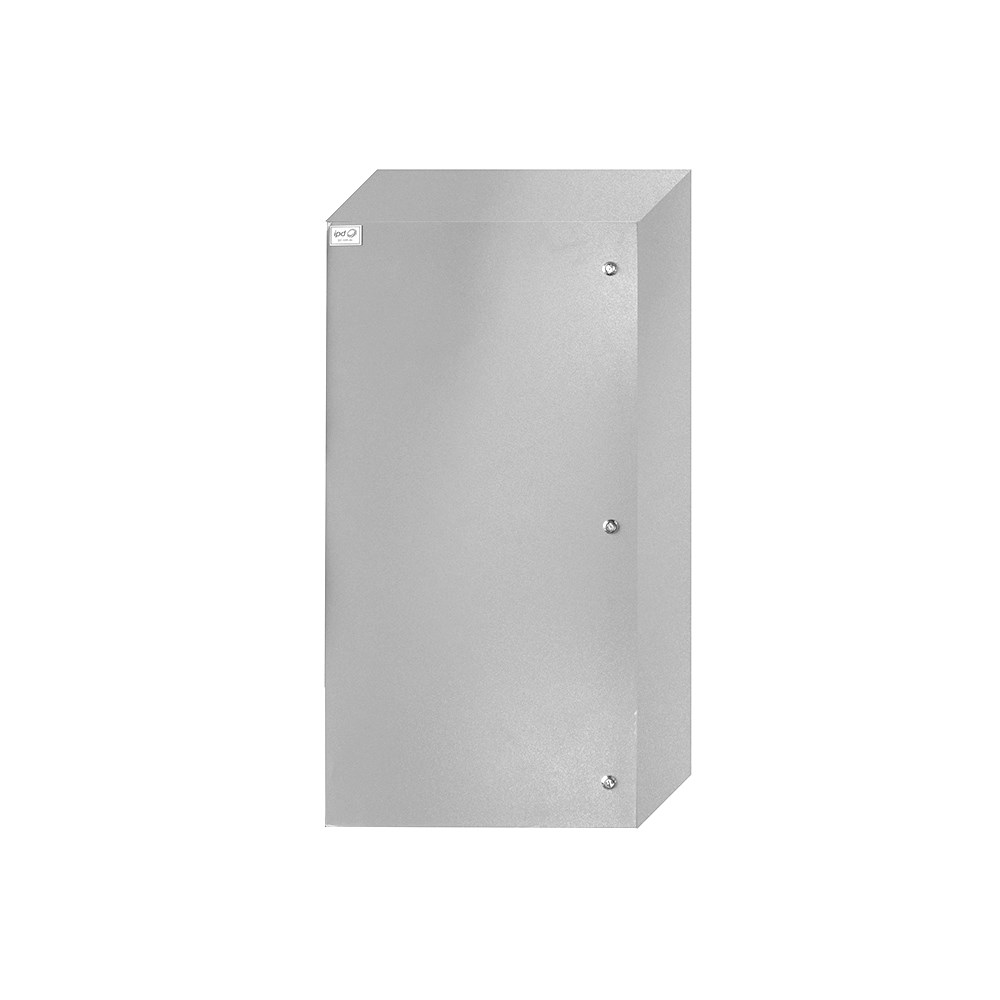

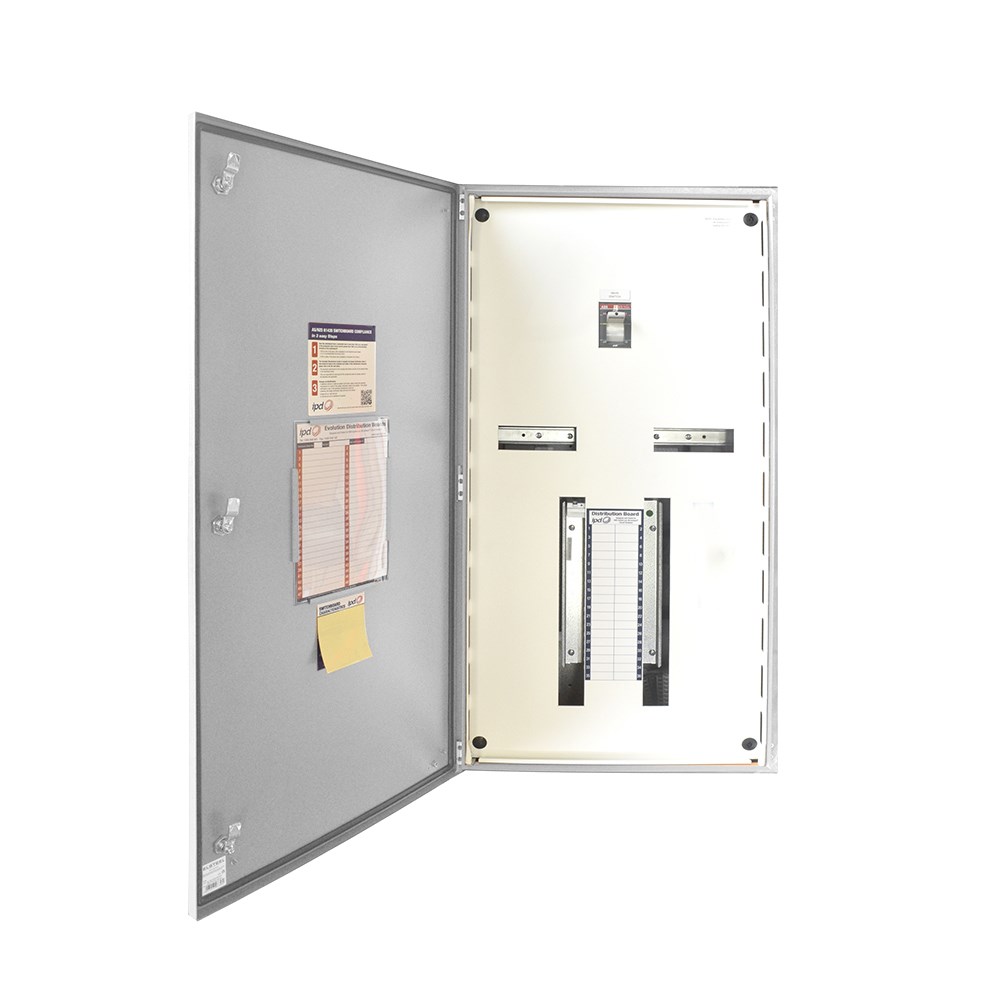

Evolution distribution boards are designed for System pro M S200 range protection devices, made from 1.0mm & 1.2mm Mild Steel RAL7035 grey. IP43 suitable for indoor applications, such as inside an electrical cupboard, switch room or mounted on an internal wall. Enclosure comes with 400A Non-Auto MCCB, Full Gland Plate Top & Bottom, 12P encapsulated chassis, Metal locks and Hinged Escutcheon. Size: 1400H X 600W X 200Dmm.

Technical Specifications

Brand IPD
Colour Grey, RAL7035
Degree of Protection IP43
Dimensions (mm) 1400H x 600W x 200D
DIN Accessory Spaces 16
Material Mild Steel
No. of Locks 3
No. of Poles 12P
Rated Current of Main Switch (A) 400
Type of Main Switch Non-Auto MCCB
