Product Code: NFZ40E21

NFZ contactor relays are used for switching auxiliary and control circuits. NFZ contactor relays include an electronic coil interface accepting a wide control voltage Uc min. ... Uc max. Only four coils cover control voltages between 24...250 V 50/60 Hz or 12...250 V DC. NF contactor relays can manage large control voltage variations. One coil can be used for different control voltages used worldwide without any coil change NFZ contactor relays allow direct control by PLC-output ¥ 24 V DC 500 mA and obtain a reduced holding coil consumption. NFZ contactor relays withstand short voltage dips and voltage sags (SEMI F47-0706 compliance) between 24...250 V 50/60 Hz NFZ contactor relays have built-in surge protection and do not require additional surge suppressors - Poles: 4-pole contactor relays - Control Circuit: AC or DC operated - Accessories: a wide range of Accessories is available.

Actuating Voltage Type	AC/DC
No. of Normally-open Auxiliary Contacts	4
Rated Operational Current (A)	3
Rated Operational Current AC-15 400V (A)	3
Brand	ABB
Auxiliary Contacts	4NO
Connection Type	Screw Connection for Auxiliary Circuit
Degree of Protection	IP20
Dimensions (mm)	45W x 86H x 77D
Mounting Type	DIN Rail / Screw
No. of Poles	4
Operating Voltage AC (V)	690
Rated Control Circuit Voltage AC (V)	24 - 60
Rated Control Circuit Voltage DC (V)	20 - 60
Rated Control Supply Voltage AC (V)	24
Rated Control Supply Voltage DC (V)	20
Rated Impulse Withstand Voltage (kV)	6
Rated Insulation Voltage (V)	690
Rated Operational Voltage AC (V)	690
Rated Supply Voltage AC (V)	24
Terminal Type	Screw

Contactors

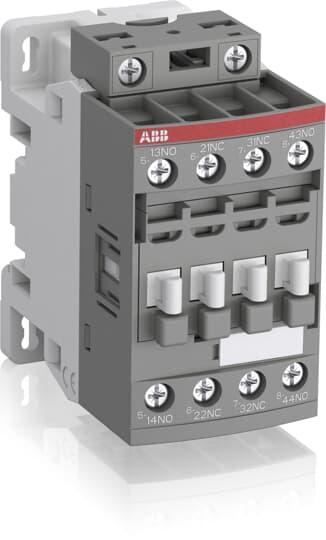

ABB NFZ40E-21 24-60V50/60HZ 20-60VDC CONTACTOR RELAY NFZ40E21

Product Code: NFZ40E21
