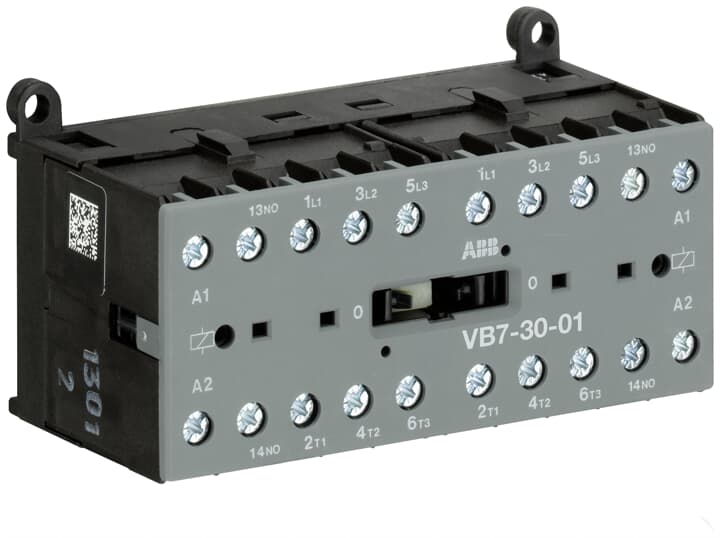

Cable Sections - Auxiliary Circuit |
Flexible with Ferrule 1/2x 1 ... 2.5 mm²
Flexible with Insulated Ferrule 1/2x 1 ... 2.5 mm²
Flexible 1/2x 1 ... 2.5 mm²
Rigid 1/2x 1 ... 4 mm² |
|
Cable Sections - Control Circuit |
Flexible with Ferrule 1/2x 1 ... 2.5 mm²
Flexible with Insulated Ferrule 1/2x 1 ... 2.5 mm²
Flexible 1/2x 1 ... 2.5 mm²
Rigid 1/2x 1 ... 4 mm² |
|
Cable Sections - Main Circuit |
Flexible with Ferrule 1/2x 1 ... 2.5 mm²
Flexible with Insulated Ferrule 1/2x 1 ... 2.5 mm²
Flexible 1/2x 1 ... 2.5 mm²
Rigid 1/2x 1 ... 4 mm² |
|
Coil Operating Limits |
(according to IEC 60947-4-1) for AC power supply 0.85 ... 1.1 x Uc (at θ ≤ 55 °C) |
|
DIN Rail Mounting |
TH35-15 (35 x 15 mm Mounting Bar) according to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Bar) according to IEC 60715 |
|
Maximum Electrical Switching Frequency |
AC-1 300 cycles per hour
AC-15 600 cycles per hour
AC-3 600 cycles per hour
DC-1 600 cycles per hour
DC-13 600 cycles per hour
DC-3 600 cycles per hour |
|
Mechanical Durability |
10000000 cycle(s) |
|
No. of Auxiliary Contacts |
1 NC |
|
No. of Main Contacts |
3 NO |
|
Rated Control Voltage |
380 ... 415 V AC |
|
Rated Insulation Voltage |
690V according to UL/CSA 600 V |
|
Rated Operational Current AC-3 (A) |
(230 V) Three Phase 3 kW
(400 V) Three Phase 5.5 kW
(500V) Three Phase 5.5kW
(690 V) Three Phase, NO 3 kW |
|
Brand |
ABB |
|
Conventional Free-Air Thermal Current - Ith (A) |
Main Circuit 20 A |
|
Degree of Protection |
IP20 Main Circuit Terminals |
|
Dimensions (mm) |
57.5 * 96.2 * 46.7 [H*W*D] |
|
No. of Poles |
3 |
|
Pollution Degree |
3 |
|
Power Loss (W) |
at Nominal Operating Conditions AC-1 for Polo 1.4 W |
|
Rated Frequency (Hz) |
50 / 60 |
|
Rated Impulse Withstand Voltage (kV) |
Main Circuit 6 kV |
|
Rated Operational Current AC-1 (A) |
(220 / 240 V) 40 °C 20 A
(220 / 240 V) 55 °C 16 A
(380 / 440 V) 40 °C 20 A
(380 / 440 V) 55 °C 16 A
(690V) 40°C 6A
(690V) 55°C 6A |
|
Rated Operational Voltage AC (V) |
Auxiliary Circuit 690 V AC
Auxiliary Circuit 250 V DC
Main Circuit 690 V AC
Main Circuit 220 V DC |
|
Standards |
IEC/EN 60947-1, IEC/EN 60947-4-1, IEC/EN 60947-5-1, UL 60947-1, UL 60947-4-1 |
|
Tightening Torque (Nm) |
Control Circuit 0.8 ... 1.1 N m
Main Circuit 0.8 ... 1.1 N m |
|
Wire Stripping Length (mm) |
9 |
