ABB VB7-30-01-80 MINI REVERSING CONTACTOR 220 ... 240 V AC - 3 NO - 0 NC - SCREW TERMINALS VB7300180
Zoom
Zoom

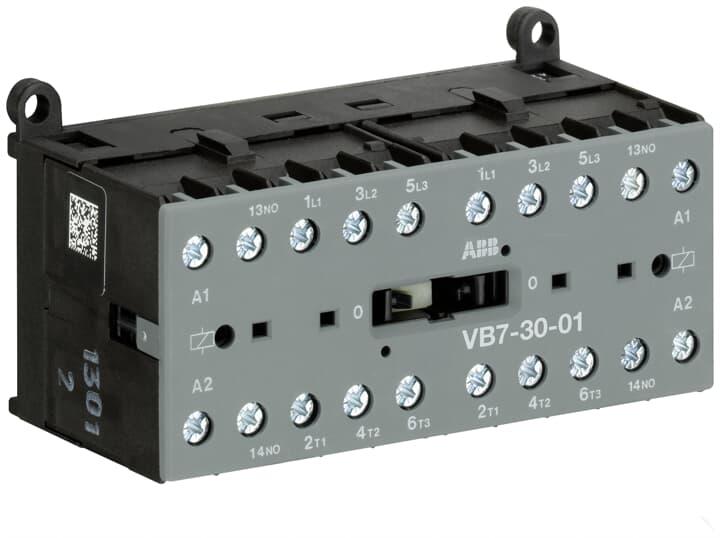

ABB VB7-30-01-80 MINI REVERSING CONTACTOR 220 ... 240 V AC - 3 NO - 0 NC - SCREW TERMINALS VB7300180
Product Code: VB7300180
The VB7-30-01 mini reversing contactor is a compact 3 pole contactor with 1 auxiliary contact, screw terminals and normal mechanical interlock. They are ideally suited for applications where reliability is a must and space is at a premium. Mini reversing contactors are used in residential buldings, commercial buildings and industrial applications for the control of three-phase motor loads up to 5.5 kW (AC-3). Further features are the silent coil, a switch position indication and the integrated possibility for rail or wall mounting.
Technical Specifications
Actuating Voltage Type
AC
Main Circuit Electrical Connection
Screw Connection
No. of Normally-closed Auxiliary Contacts
1
Brand
ABB
Auxiliary Contacts
1NC
Degree of Protection
IP20
Dimensions (mm)
96.2W x 57.5H x 46.7D
Function
Reversing Contactor
Mounting Type
Rail Mount
NEMA Degree of Protection
1
No. of Normally-open Contacts
3
No. of Poles
3
Operating Voltage AC (V)
690
Operational Temperature Range (°C)
-20 to +55
Pollution Degree
3
Power Loss (W)
2.0/pole
Rated Control Circuit Voltage AC (V)
220 - 240
Rated Control Supply Voltage AC (V)
220
Rated Frequency (Hz)
50/60
Rated Impulse Withstand Voltage (kV)
6
Rated Insulation Voltage (V)
690
Rated Operational Current AC-1 240V (A)
20
Rated Operational Current AC-1 690V (A)
6
Rated Operational Power AC-3 400V (kW)
5.5
Rated Operational Power AC-3 415V (kW)
5.5
Rated Operational Voltage AC (V)
690
Rated Supply Voltage AC (V)
220
Terminal Type
Screw
Documents
Datasheet
IPD Product Catalogue V17
