Product Code: VB7A301001

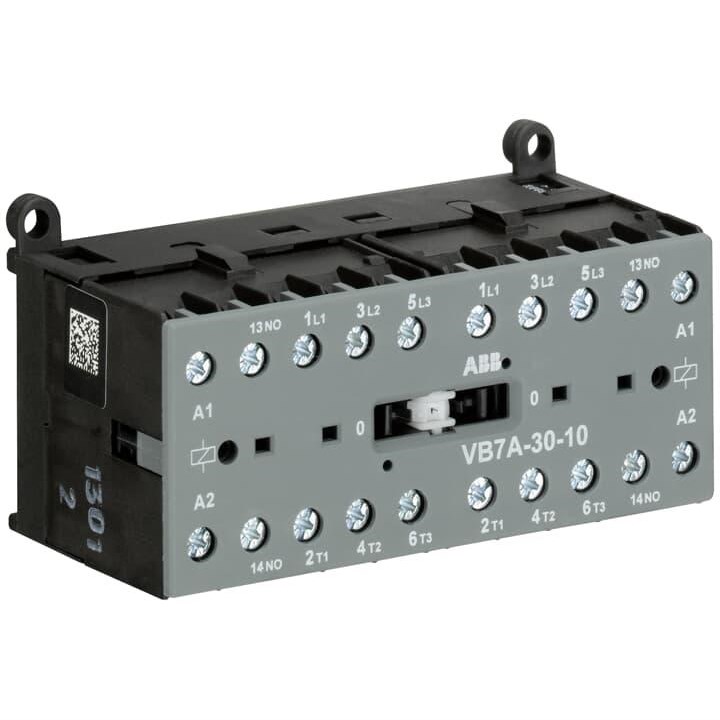

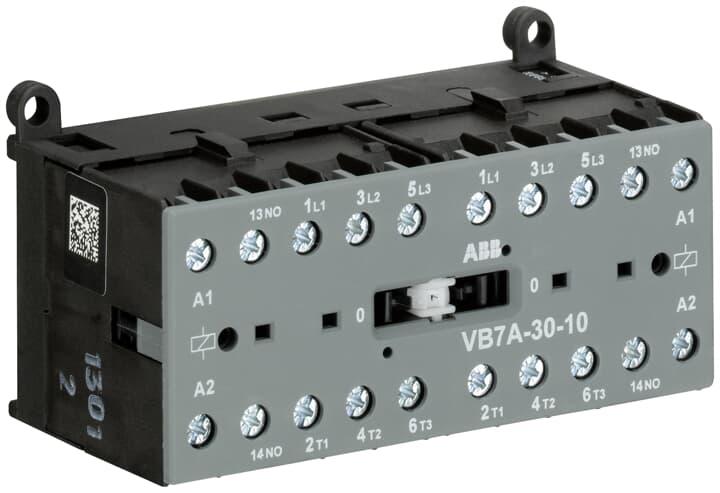

The VB7A-30-10 mini reversing contactor is a compact 3 pole contactor with 1 auxiliary contact, screw terminals and mechanical interlock and safety blocking. They are ideally suited for applications where reliability is a must and space is at a premium. Mini reversing contactors are used in residential buldings, commercial buildings and industrial applications for the control of three-phase motor loads up to 5.5 kW (AC-3). Further features are the silent coil, a switch position indication and the integrated possibility for rail or wall mounting.

Actuating Voltage Type	AC
Main Circuit Electrical Connection	Screw Connection
No. of Normally-open Auxiliary Contacts	1
Brand	ABB
Auxiliary Contacts	1NO
Contacts	3NO (Main Contacts)
Degree of Protection	IP20
Dimensions (mm)	96.2W x 57.5H x 46.7D
Function	Reversing Contactor
Mounting Type	Rail Mount
NEMA Degree of Protection	1
No. of Normally-open Contacts	3
No. of Poles	3
Operating Voltage AC (V)	690
Operational Temperature Range (°C)	-20 to +55
Pollution Degree	3
Power Loss (W)	2.0/pole 1.4/pole AC-1
Rated Control Circuit Voltage AC (V)	24
Rated Control Supply Voltage AC (V)	24
Rated Frequency (Hz)	50/60
Rated Impulse Withstand Voltage (kV)	6
Rated Insulation Voltage (V)	690
Rated Operational Current AC-1 240V (A)	20
Rated Operational Current AC-1 690V (A)	6
Rated Operational Power AC-3 400V (kW)	5.5
Rated Operational Voltage AC (V)	690
Rated Operational Voltage DC (V)	220
Rated Supply Voltage AC (V)	24
Terminal Type	Screw
