Product Code: VB6A400080

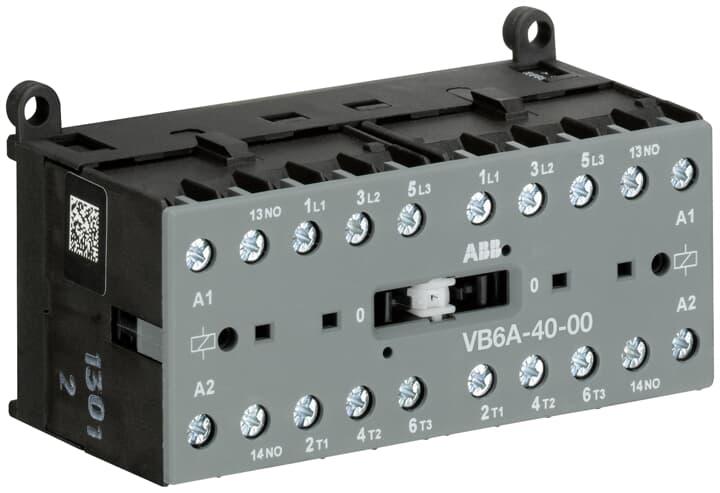

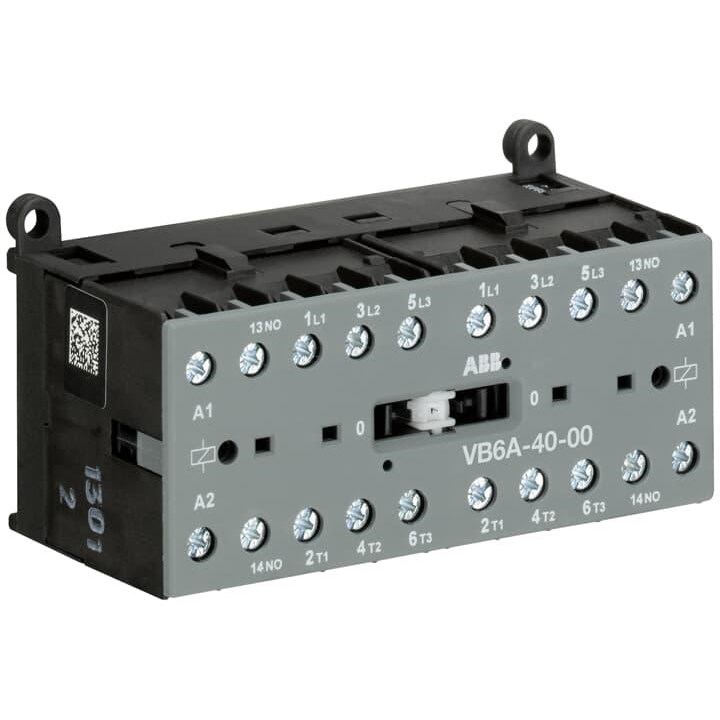

The VB6A-40-00 mini reversing contactor is a compact 4 pole contactor with screw terminals and mechanical interlock and safety blocking. They are ideally suited for applications where reliability is a must and space is at a premium. Mini reversing contactors are used in residential buldings, commercial buildings and industrial applications for the control of three-phase motor loads up to 4 kW (AC-3). Further features are the silent coil, a switch position indication and the integrated possibility for rail or wall mounting.

Actuating Voltage Type	AC
Main Circuit Electrical Connection	Screw Connection
Operating Voltage Type	AC
Brand	ABB
Contacts	4NO (Main Contacts)
Degree of Protection	IP20
Dimensions (mm)	96.2W x 57.5H x 46.7D
Function	Reversing Contactor
Mounting Type	Rail Mount
NEMA Degree of Protection	1
No. of Normally-open Contacts	4
No. of Poles	4
Operating Voltage AC (V)	690
Operational Temperature Range (°C)	-20 to +55
Pollution Degree	3
Power Loss (W)	1.0/pole AC-1
Rated Control Circuit Voltage AC (V)	220 - 240
Rated Control Supply Voltage AC (V)	220
Rated Frequency (Hz)	50/60
Rated Impulse Withstand Voltage (kV)	6
Rated Insulation Voltage (V)	690
Rated Operational Current AC-1 240V (A)	20
Rated Operational Current AC-1 690V (A)	6
Rated Operational Power AC-3 400V (kW)	4
Rated Operational Voltage AC (V)	690
Rated Operational Voltage DC (V)	220
Rated Supply Voltage AC (V)	220
Terminal Type	Screw

Contactors

ABB VB6A-40-00-80 MINI REVERSING CONTACTOR 220 ... 240 V AC - 4 NO - 0 NC - SCREW TERMINALS VB6A400080

Product Code: VB6A400080
