Product Code: B6400001

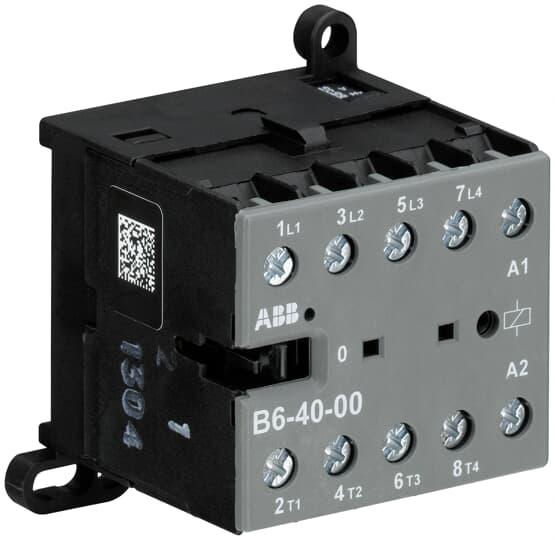

The B6-40-00 mini contactor is a compact 4 pole contactor with screw terminals. They are ideally suited for applications where reliability is a must and space is at a premium. Mini contactors are used in residential buldings, commercial buildings and industrial applications for the control of single or three-phase loads up to 4 kW (AC-3) and 20 A / 690 V (AC-1) or switching of control signals. Further features are the silent coil, a switch position indication and the integrated possibility for rail or wall mounting.

Actuating Voltage Type	AC
Main Circuit Electrical Connection	Screw Connection
Brand	ABB
Auxiliary Contacts	4NO
Degree of Protection	IP20
Dimensions (mm)	52.5W x 57.5H x 46.7D
Mounting Type	DIN Rail / Wall
No. of Normally-open Contacts	4
No. of Poles	4
Operating Voltage AC (V)	220
Operational Temperature Range (°C)	-20 to +55
Power Loss (W)	2.0/pole 1.0/pole AC-1
Rated Control Circuit Voltage AC (V)	24
Rated Control Supply Voltage AC (V)	24
Rated Control Supply Voltage DC (V)	24
Rated Frequency (Hz)	50/60
Rated Impulse Withstand Voltage (kV)	6
Rated Insulation Voltage (V)	690
Rated Operational Current AC-1 240V (A)	20
Rated Operational Current AC-1 690V (A)	6
Rated Operational Power AC-3 400V (kW)	4
Rated Operational Power AC-3 415V (kW)	4
Rated Operational Voltage AC (V)	220
Rated Supply Voltage AC (V)	24
Terminal Type	Screw

Contactors

ABB B6-40-00-01 MINI CONTACTOR 24 V AC - 4 NO - 0 NC - SCREW TERMINALS B6400001

Product Code: B6400001

Technical Specifications
