Product Code: GAF750101168

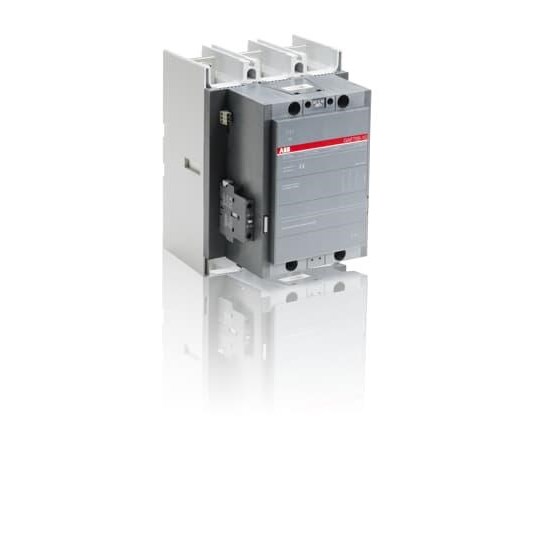

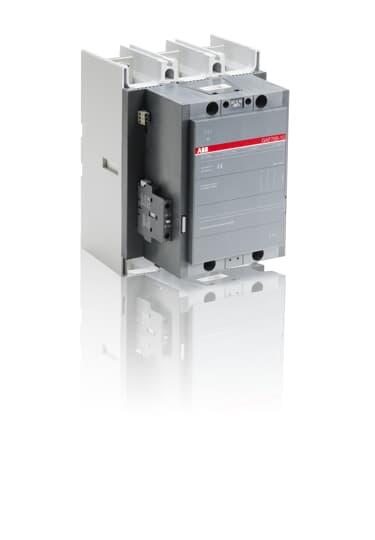

The DC Contactor 1P (3P-in Series) is a powerful contactor designed for controlling shunt or series motors and resistive or slightly inductive loads. It has a rated operational current of 875A at 1000V DC. The control voltage ranges from 24V to 60V DC. This contactor features built-in surge suppression for added protection. It has auxiliary contacts with 1 normally open (NO) and 1 normally closed (NC) configuration. The contactor has a block type design with 3 main poles that are delivered connected in series. Additionally, it supports add-on auxiliary contact blocks for side mounting. The DC Contactor 1P (3P-in Series) is suitable for panel mounting, making it convenient to integrate into various electrical systems.

Brand	ABB
Auxiliary Contacts	1NO/1NC
Contacts	1NO (Main Contacts)
Degree of Protection	IP20 (Coil Terminals)
Dimensions (mm)	283H x 242D x 210W
Mounting Type	Panel
No. of Poles	1P (3P in Series)
Rated Control Circuit Voltage DC (V)	24 - 60
Rated Impulse Withstand Voltage (kV)	8
Rated Insulation Voltage (V)	1000
Rated Operational Current DC-1 1000V (A)	875
Rated Operational Voltage DC (V)	1000
Terminal Type	Main Circuit: Bars

Contactors

ABB GAF750101168 DC CONTACTOR 1P 875A (DC-1) 1000V, CONTROL 24-60VDC AUX 1NO+1NC
