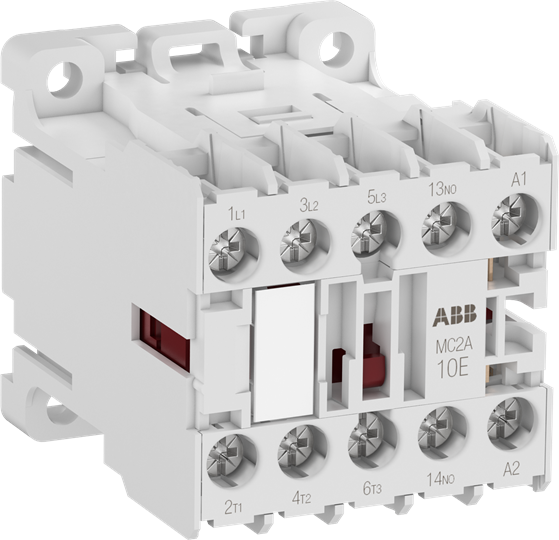

ABB MC2A310AT1 MINI CONTACTOR 3P (3NO), 5.5KW 400VAC CONTROL 24VAC, AUX 1NO

Product Code: MC2A310AT1

The MC2A310AT1 mini contactor is a compact 3 pole contactor with 1 NO auxiliary contact and screw terminals. It is designed for high performance in limited spaces. This mini contactor is commonly used in residential, commercial, and industrial applications to control single or three-phase loads up to 5.5 kW (AC-3) and 20 A / 690 V (AC-1). It can also be used for switching control signals. The product can be mounted on walls or rails.

Technical Specifications

Brand ABB
Auxiliary Contacts 1NO
Degree of Protection IP20
Dimensions (mm) 48H x 56D x 45W
Mode of Operation AC
Mounting Type DIN Rail/Wall
No. of Poles 3P
Operational Temperature Range (°C) -40 to +55
Power Loss (W) 0.7/pole AC-1
Rated Control Circuit Voltage AC (V) 24
Rated Frequency (Hz) 50/60
Rated Impulse Withstand Voltage (kV) 6
Rated Insulation Voltage (V) 750
Rated Operational Current AC-1 400V (A) 20
Rated Operational Power AC-3 400V (kW) 5.5
Rated Operational Voltage AC (V) 690
Series M
Terminal Type Screw
