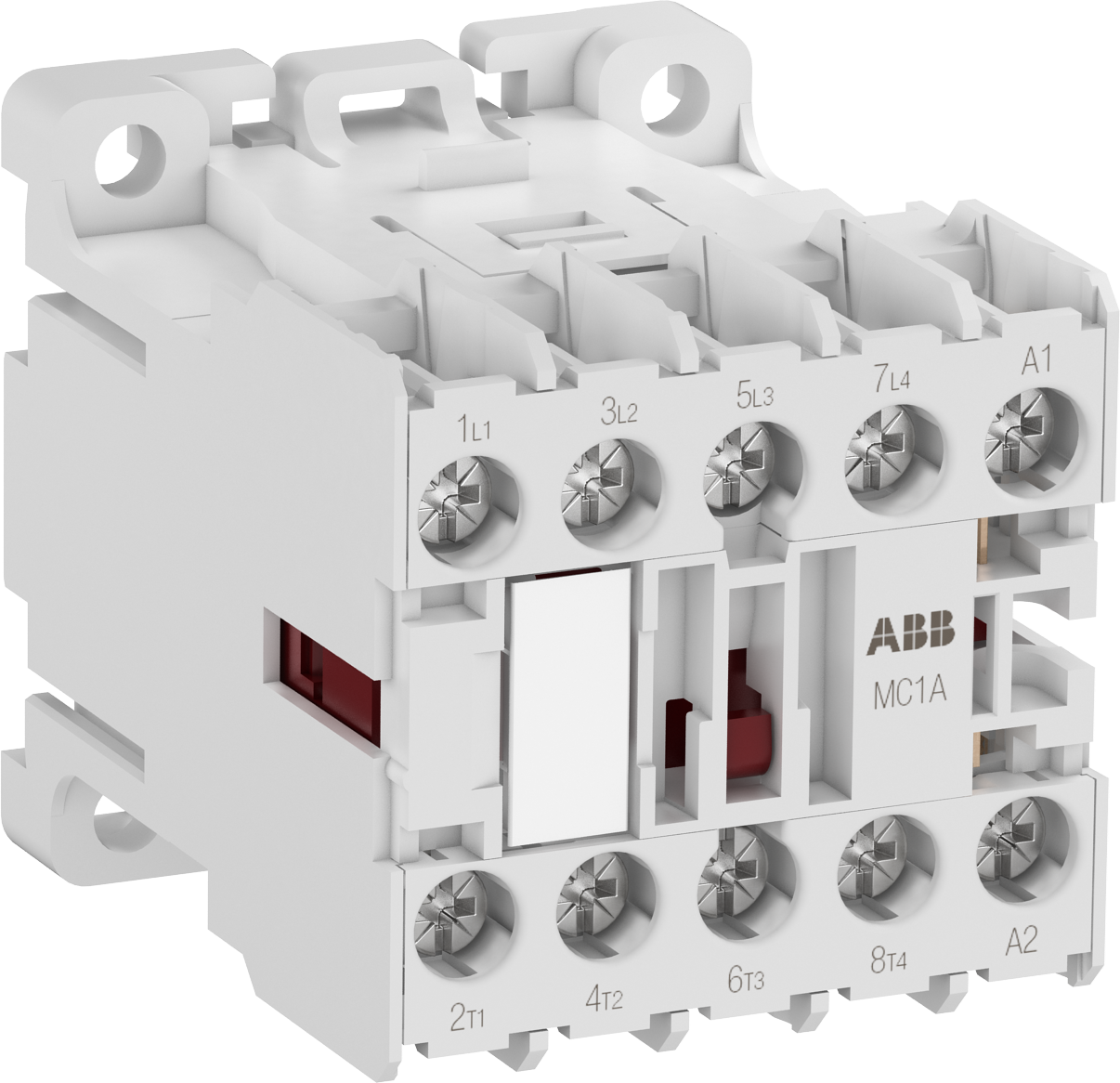

ABB MINI CONTACTOR 4P (4NO), 4kW 415V AC CONTROL 220-240V AC MC1A400ATN

Product Code: MC1A400ATN

The MC1A400ATN mini contactor is a compact 4 pole contactor with screw terminals. It is designed for high performance in limited spaces. This mini contactor is commonly used in residential, commercial, and industrial settings to control single or three-phase loads up to 4 kW (AC-3) and 20 A / 690 V (AC-1). It can also be used for switching control signals. The MC1A400ATN is suitable for both wall and rail mounting.

Technical Specifications

Brand ABB
Degree of Protection IP20
Dimensions (mm) 45W x 48H x 56D
Mode of Operation AC
Mounting Type DIN Rail/Wall
No. of Poles 4
Operational Temperature Range (°C) -40 to +55
Power Loss (W) 0.7/Pole AC-1
Rated Control Circuit Voltage AC (V) 220 - 240
Rated Frequency (Hz) 50/60
Rated Impulse Withstand Voltage (kV) 6
Rated Insulation Voltage (V) 750
Rated Operational Current AC-1 400V (A) 20
Rated Operational Power AC-3 400V (kW) 4
Rated Operational Voltage AC (V) 690
Series M
Terminal Type Screw
