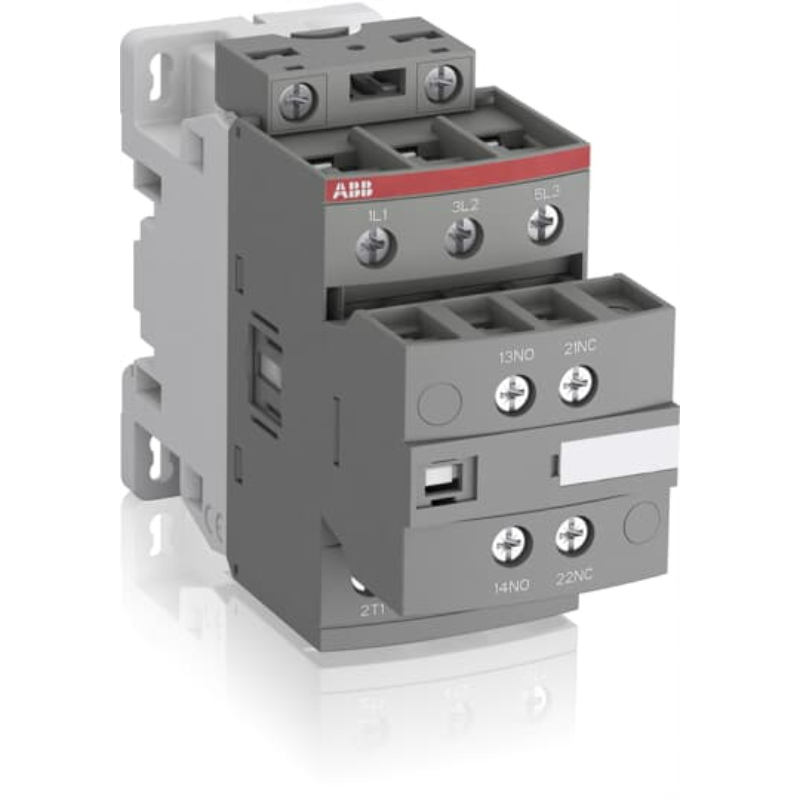

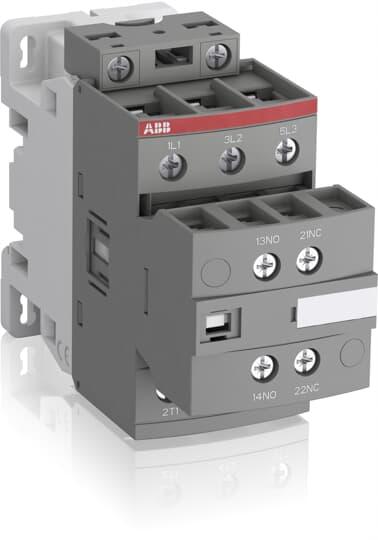

ABB AF CONTACTOR 3P, 45A (AC-1), 11kW 415V (AC-3), CONTROL 100-250V AC/DC AF26301113

Product Code: AF26301113

Technical Specifications

Brand ABB
Auxiliary Contacts 1NO 1NC
Degree of Protection IP20
Dimensions (mm) 45W X 86H X 111.5D
Mounting Type DIN Rail/Base
No. of Poles 3P
Rated Control Circuit Voltage AC (V) 100 - 250
Rated Control Circuit Voltage DC (V) 100 - 250
Rated Frequency (Hz) 50/60
Rated Impulse Withstand Voltage (kV) 6
Rated Insulation Voltage (V) 690
Rated Operational Current AC-1 690V (A) 45
Rated Operational Current AC-3 415V (A) 26
Rated Operational Power AC-3 415V (kW) 11
Rated Operational Voltage AC (V) 690
Terminal Type Screw terminals
