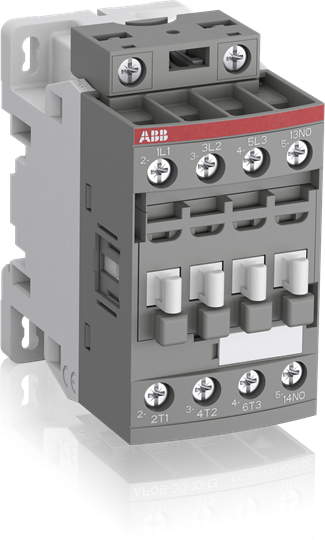

Cable Sections - Auxiliary Circuit |
Flexible with Ferrule 1/2x 0.75 ... 2.5 mm²
Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm²
Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²
Rigid Solid 1/2x 1 ... 2.5 mm²
Rigid Stranded 1/2x 1 ... 2.5 mm² |
|
Cable Sections - Control Circuit |
Flexible with Ferrule 1/2x 0.75 ... 2.5 mm²
Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²
Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm²
Rigid Solid 1/2x 1 ... 2.5 mm²
Rigid Stranded 1/2x 1 ... 2.5 mm² |
|
Cable Sections - Main Circuit |
Flexible with Ferrule 1/2x 0.75 ... 6 mm²
Flexible with Insulated Ferrule 1x 0.75 ... 4 mm²
Flexible with Insulated Ferrule 2x 0.75 ... 2.5 mm²
Rigid Solid 1/2x 1 ... 4 mm²
Rigid Stranded 1/2x 1 ... 6 mm² |
|
Clamp Type |
Screw Terminals |
|
DIN Rail Mounting |
TH35-15 (35 x 15 mm Mounting Bar) according to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Bar) according to IEC 60715 |
|
Maximum Breaking Capacity |
cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 250 A
cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 106 A |
|
Maximum Electrical Switching Frequency |
AC-1 600 cycles per hour
AC-15 1200 cycles per hour
AC-2 / AC-4 300 cycles per hour
AC-3 1200 cycles per hour
DC-13 900 cycles per hour |
|
Maximum Mechanical Switching Frequency |
3600 cycles per hour |
|
No. of Auxiliary Contacts |
1 NC |
|
No. of Main Contacts |
3 NO |
|
Rated Control Voltage |
50 Hz 250 ... 500 V
60 Hz 250 ... 500 V
Operation in DCin CD 250 ... 500 V |
|
Rated Insulation Voltage |
acc. to IEC 60947-4-1 690 V
acc. to IEC 60947-5-1 690 V
according to UL/CSA 600 V |
|
Rated Operational Current AC-3 (A) |
(415V) 60°C 12A
(440V) 60°C 12A
(500V) 60°C 12.5A
(690V) 60°C 9A
(380 / 400 V) 60 °C 12 A
(220 / 230 / 240 V) 60 °C 12 A |
|
Rated Operational Power AC-3 (kW) |
(400V) 5.5kW
(415V) 5.5kW
(440V) 5.5kW
(500V) 7.5kW
(690V) 7.5kW
(380 / 400 V) 5.5 kW
(220 / 230 / 240 V) 3 kW |
|
Rated Short-time Withstand Current Low Voltage - Icw (A) |
at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 150 A
at 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 35 A
at 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 60 A
at 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 300 A
at 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 80 A, for 0.1 s 140 A, for 1 s 100 A |
|
Type of Mounting |
2 x M4 screws placed diagonally (not supplied). |
|
Brand |
ABB |
|
Conventional Free-Air Thermal Current - Ith (A) |
according to IEC 60947-4-1, Open Contactors q = 40 °C 35 A
according to IEC 60947-5-1, q = 40 °C 16 A |
|
Degree of Protection |
according to IEC 60529, IEC 60947-1, EN 60529 IP20 Auxiliary Terminals
according to IEC 60529, IEC 60947-1, EN 60529 IP20 coils
according to IEC 60529, IEC 60947-1, EN 60529 IP20 Main Terminals |
|
Dimensions (mm) |
86 * 45 * 77 [H*W*D] |
|
No. of Poles |
3 |
|
Rated Frequency (Hz) |
50 / 60 |
|
Rated Impulse Withstand Voltage (kV) |
6 |
|
Rated Operational Current AC-1 (A) |
(690V) 40°C 28A
(690V) 60°C 28A
(690V) 70°C 24A |
|
Rated Operational Voltage AC (V) |
Auxiliary Circuit 690 V
Main Circuit 690 V |
|
Standards |
IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60947-4-1, CSA C22.2 No. 60947-4-1 |
|
Wire Stripping Length (mm) |
10 |
