Product Code: AF190400014

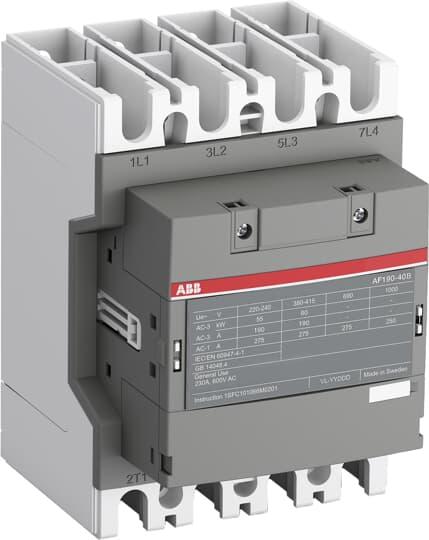

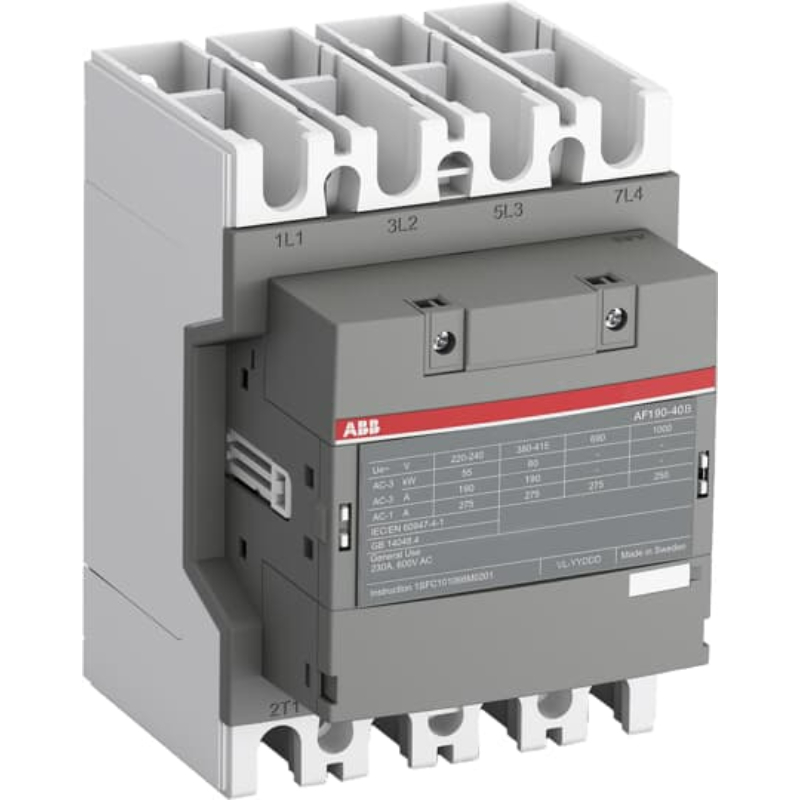

The AF Contactor 4P (4NO) is a powerful and versatile electrical component. It has a rated operational current of 275A at 690V (AC1) and 190A at 415V (AC-3), making it suitable for handling high power loads up to 90kW. With a control voltage range of 250-500V AC/DC, this contactor can effectively manage large variations in control voltage, ensuring stable and reliable operations even in unstable networks. Additionally, the AF Contactor can be easily extended with add-on auxiliary contact blocks, providing flexibility for different applications. It also features built-in surge suppression, protecting connected equipment from voltage spikes and surges. Designed for panel mounting, this contactor is an ideal choice for various industrial and commercial applications where reliable control of high-power loads is required.

Brand	ABB
Contacts	4NO (Main Contacts)
Degree of Protection	IP20 (Coil Terminals)
Dimensions (mm)	196H x 153D x 140W
Mounting Type	Panel
No. of Poles	4P
Rated Control Circuit Voltage AC/DC (V)	250 - 500
Rated Frequency (Hz)	60
Rated Impulse Withstand Voltage (kV)	8
Rated Insulation Voltage (V)	1000
Rated Operational Current AC-1 690V (A)	275
Rated Operational Current AC-3 415V (A)	190
Rated Operational Power AC-3 415V (kW)	90
Rated Operational Voltage AC (V)	1000
Short-Circuit Protective Device	355A, fuse type gG
Terminal Type	Main Circuit: Bars
