Product Code: AF140400014

The AF Contactor 4P (4NO) is a versatile and reliable electrical component designed for panel mounting. It has a rated operational current of 200A at 690V AC1 and 140A at 415V AC-3, making it suitable for various applications. With a control voltage range of 250-500V AC/DC, this contactor can effectively manage large control voltage variations, ensuring stable and distinct operations even in unstable networks. Additionally, the AF Contactor can be easily extended with add-on auxiliary contact blocks to meet specific requirements. It also features built-in surge suppression, providing added protection against power surges. Overall, the AF Contactor is an efficient solution for controlling electrical circuits, reducing panel energy consumption, and ensuring reliable performance in demanding environments.

Brand	ABB
Contacts	4NO (Main Contacts)
Degree of Protection	IP20 (Coil Terminals)
Dimensions (mm)	150H x 128D x 120W
Mounting Type	Panel
No. of Poles	4P
Rated Control Circuit Voltage AC/DC (V)	250 - 500
Rated Frequency (Hz)	60
Rated Impulse Withstand Voltage (kV)	8
Rated Insulation Voltage (V)	1000
Rated Operational Current AC-1 690V (A)	200
Rated Operational Current AC-3 415V (A)	140
Rated Operational Power AC-3 415V (kW)	75
Rated Operational Voltage AC (V)	690
Short-Circuit Protective Device	250A, fuse type gG
Terminal Type	Double Clamp

Contactors

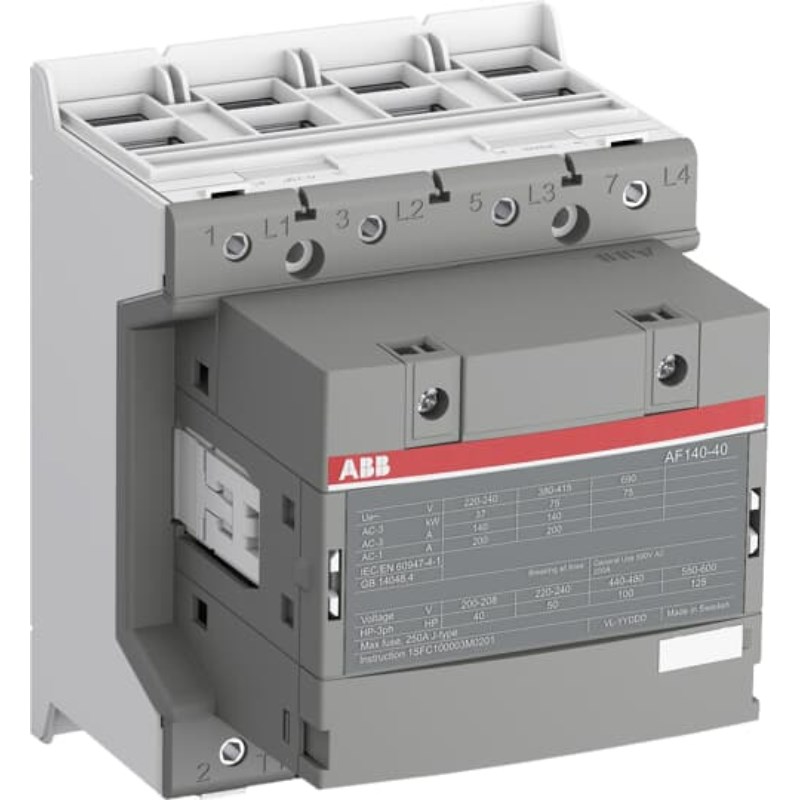

ABB AF140400014 AF CONTACTOR 4P, 200A (AC-1), 75KW 415VAC CONTROL 250-500VAC/DC

Product Code: AF140400014
