Product Code: AF116400013

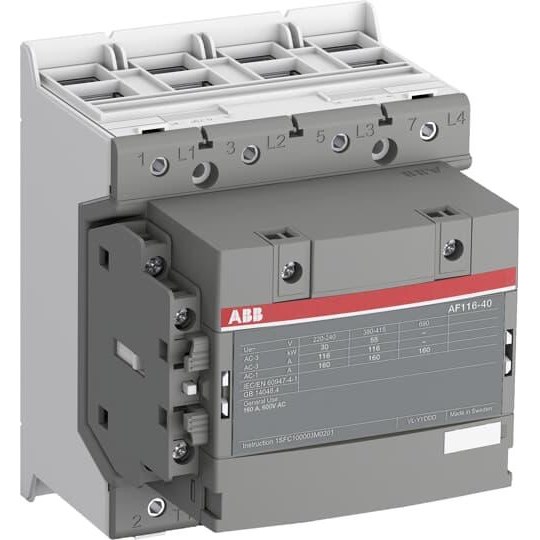

The AF Contactor 4P (4NO) is a versatile and reliable electrical component designed for panel mounting. It has a rated operational current of 160A at 690V (AC1) and 116A at 415V (AC-3), making it suitable for various applications. With a control voltage range of 100-250V AC/DC, it can effectively manage large control voltage variations, ensuring distinct operations even in unstable networks. Additionally, the contactor features built-in surge suppression to protect connected equipment. It can also be easily extended with add-on auxiliary contact blocks for enhanced functionality.

Brand	ABB
Contacts	4NO (Main Contacts)
Degree of Protection	IP20 (Coil Terminals)
Dimensions (mm)	150H x 128D x 120W
Mounting Type	Panel
No. of Poles	4P
Rated Control Circuit Voltage AC/DC (V)	100 - 250
Rated Frequency (Hz)	60
Rated Impulse Withstand Voltage (kV)	8
Rated Insulation Voltage (V)	1000
Rated Operational Current AC-1 690V (A)	160
Rated Operational Current AC-3 415V (A)	116
Rated Operational Power AC-3 415V (kW)	55
Rated Operational Voltage AC (V)	690
Short-Circuit Protective Device	200A, fuse type gG
Terminal Type	Double Clamp

Contactors

ABB AF116400013 AF CONTACTOR 4P, 160A (AC-1), 55KW 415VAC CONTROL 100-250VAC/DC

Product Code: AF116400013
