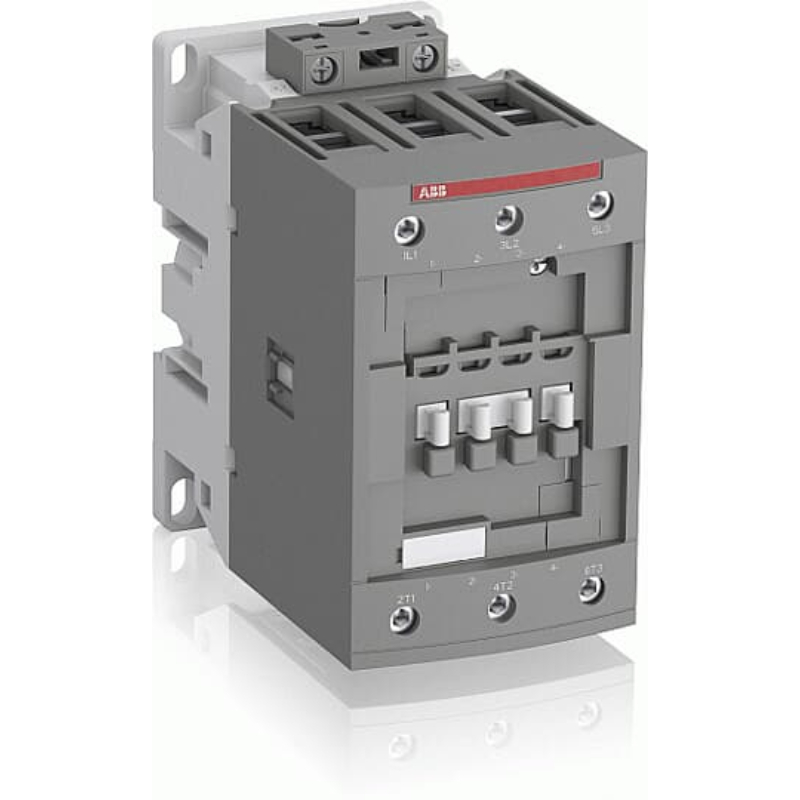

Cable Sections - Control Circuit |
Flexible with Ferrule 1/2x 0.75 ... 2.5 mm²
Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²
Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm²
Rigid Solid 1/2x 1 ... 2.5 mm²
Rigid Stranded 1/2x 1 ... 2.5 mm² |
|
Cable Sections - Main Circuit |
Flexible with Ferrule 1/2x 6 ... 50 mm²
Flexible with Insulated Ferrule 1/2x 6 ... 50 mm²
Rigid Stranded 1x 6 ... 70 mm²
Rigid Stranded 2x 6 ... 50 mm² |
|
Clamp Type |
Screw Terminals |
|
Coil Consumption |
Average Retention Value 50 / 60 Hz 4 V A
Average Retention Value 50 Hz 4 V A
Average Retention Value 60 Hz 4 V A
Average DC Retention Value 2 W
Average Retention Value, from the Hot state 2 W |
|
DIN Rail Mounting |
TH35-15 (35 x 15 mm Mounting Bar) according to IEC 60715 |
|
Maximum Breaking Capacity |
cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 1150 A
cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 750 A |
|
Maximum Electrical Switching Frequency |
AC-1 600 cycles per hour
AC-2 / AC-4 150 cycles per hour
AC-3 1200 cycles per hour |
|
Maximum Mechanical Switching Frequency |
3600 cycles per hour |
|
No. of Main Contacts |
3 NO |
|
Rated Control Voltage |
50 Hz 250 ... 500 V
60 Hz 250 ... 500 V
Operation in DCin CD 250 ... 500 V |
|
Rated Insulation Voltage |
acc. to IEC 60947-4-1 1000 V
according to UL/CSA 600 V |
|
Rated Operational Current AC-3 (A) |
(415V) 60°C 96A
(440V) 60°C 96A
(500V) 60°C 80A
(690V) 60°C 57A
(1000V) 60°C 30A
(380 / 400 V) 60 °C 105 A
(220 / 230 / 240 V) 60 °C 105 A |
|
Rated Operational Power AC-3 (kW) |
(415V) 55kW
(440V) 55kW
(500V) 55kW
(690V) 55kW
(1000V) 40kW
(380 / 400 V) 45 kW
(380 / 400 V) 55 kW
(220 / 230 / 240 V) 25 kW
(220 / 230 / 240 V) 30 kW |
|
Rated Short-time Withstand Current Low Voltage - Icw (A) |
at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 840 A
at 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 140 A
at 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 300 A
at 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 1200 A
at 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 450 A |
|
Type of Mounting |
2 x M4 or 2 x M6 screws placed diagonally (not supplied). |
|
Brand |
ABB |
|
Conventional Free-Air Thermal Current - Ith (A) |
according to IEC 60947-4-1, Open Contactors q = 40 °C 130 A |
|
Degree of Protection |
according to IEC 60529, IEC 60947-1, EN 60529 IP20 coils
according to IEC 60529, IEC 60947-1, EN 60529 IP10 Main Terminals |
|
Dimensions (mm) |
125.5 * 70 * 116 [H*W*D] |
|
No. of Poles |
3 |
|
Rated Frequency (Hz) |
50 / 60 |
|
Rated Impulse Withstand Voltage (kV) |
8 |
|
Rated Operational Current AC-1 (A) |
(690V) 40°C 130A
(690V) 60°C 105A
(690V) 70°C 90A |
|
Rated Operational Voltage AC (V) |
Main Circuit 1000 V |
|
Standards |
IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60947-1, UL 60947-4-1, CSA C22.2 No. 60947-1:22, CSA C22.2 No. 60947-4- 1:22 |
|
Wire Stripping Length (mm) |
10 [Control Circuit]
17 [Main Circuit] |
