Cable Sections - Control Circuit |
Flexible with Ferrule 1/2x 0.75 ... 2.5 mm²
Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²
Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm²
Rigid Solid 1/2x 1 ... 2.5 mm²
Rigid Stranded 1/2x 1 ... 2.5 mm² |
|
Cable Sections - Main Circuit |
Flexible with Ferrule 1/2x 6 ... 50 mm²
Flexible with Insulated Ferrule 1/2x 6 ... 50 mm²
Rigid Stranded 1x 6 ... 70 mm²
Rigid Stranded 2x 6 ... 50 mm² |
|
Clamp Type |
Screw Terminals |
|
Coil Consumption |
Average Holding Value 50 / 60 Hz 4 V·A
Average Holding Value 50 Hz 4 V·A
Average Holding Value 60 Hz 4 V·A
Average Holding Value DC 2 W
Average Holding Value, from Warm State 2 W |
|
DIN Rail Mounting |
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 |
|
Maximum Breaking Capacity |
cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 1150 A
cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 750 A |
|
Maximum Electrical Switching Frequency |
(AC-1) 600 cycles per hour
(AC-2 / AC-4) 150 cycles per hour
(AC-3) 1200 cycles per hour |
|
Maximum Mechanical Switching Frequency |
3600 cycles per hour |
|
No. of Main Contacts |
3 NO |
|
Rated Control Voltage |
50 Hz 250 ... 500 V
60 Hz 250 ... 500 V
DC Operation 250 ... 500 V |
|
Rated Insulation Voltage |
acc. to IEC 60947-4-1 1000 V
acc. to UL/CSA 600 V |
|
Rated Operational Current AC-3 (A) |
(415 V) 60 °C 80 A
(440 V) 60 °C 80 A
(500 V) 60 °C 65 A
(690 V) 60 °C 49 A
(1000 V) 60 °C 25 A
(380 / 400 V) 60 °C 80 A
(220 / 230 / 240 V) 60 °C 80 A |
|
Rated Operational Power AC-3 (kW) |
(400 V) 37 kW
(415 V) 45 kW
(440 V) 45 kW
(500 V) 45 kW
(690 V) 45 kW
(1000 V) 35 kW
(380 / 400 V) 37 kW
(220 / 230 / 240 V) 22 kW |
|
Rated Short-time Withstand Current Low Voltage - Icw (A) |
at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 780 A
at 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 140 A
at 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 300 A
at 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 1200 A
at 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 450 A |
|
Type of Mounting |
2 x M4 or 2 x M6 screws placed diagonally (not supplied). |
|

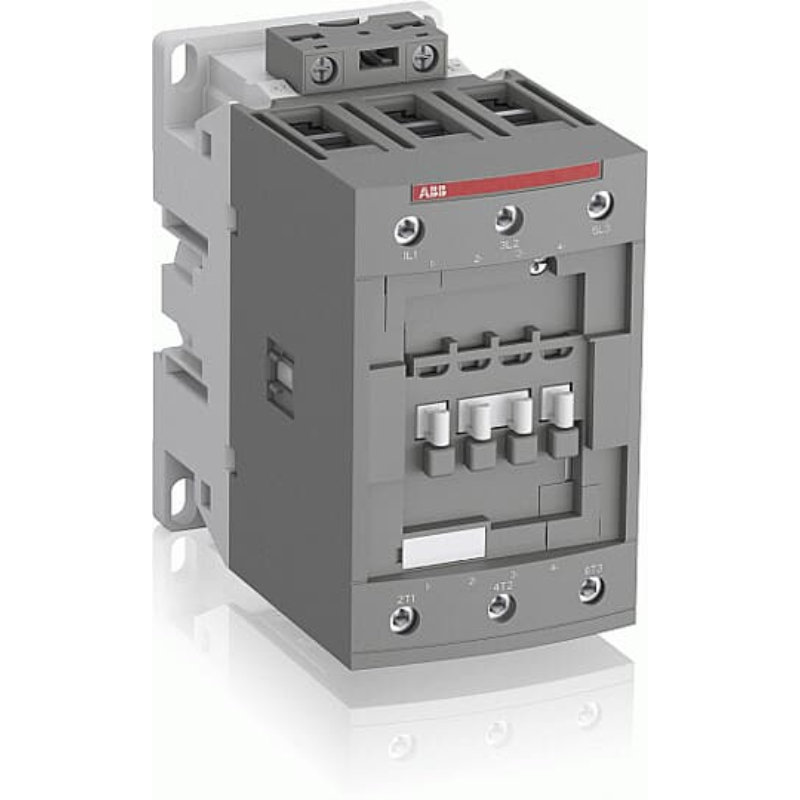

Brand |
ABB |
|
Conventional Free-Air Thermal Current - Ith (A) |
acc. to IEC 60947-4-1, Open Contactors T = 40 °C 130 A |
|
Degree of Protection |
acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20
acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP10 |
|
Dimensions (mm) |
125.5 * 70 * 116 [H*W*D] |
|
No. of Poles |
3 |
|
Rated Frequency (Hz) |
50 / 60 |
|
Rated Impulse Withstand Voltage (kV) |
8 |
|
Rated Operational Current AC-1 (A) |
(690 V) 40 °C 125 A
(690 V) 60 °C 100 A
(690 V) 70 °C 85 A |
|
Rated Operational Voltage AC (V) |
Main Circuit 1000 V |
|
Standards |
IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60947-1, UL 60947-4-1, CSA C22.2 No. 60947-1:22, CSA C22.2 No. 60947-4-1:22 |
|
Wire Stripping Length (mm) |
10 [Control Circuit]
17 [Main Circuit] |
