Electrical Connection	Male and female plug ISO 4400 (for cable Ø 4...6 mm)
Electrical Protection	Short-circuit protection: Permanent, Reverse polarity protection: No damage, but also no function, Electromagnetic compatibility: emission and immunity according to EN 61326 DNV (Det Norske Veritas).
Input Pressure (bar)	25
Mechanical Connection	G1/2" DIN 3852
Mechanical Stability	4 g (according to DNV: class B, curve 2 / basis: IEC 60068-2-6).
Operational Life	100 million load cycles.
Output Signal	4 … 20 mA / 2-wire
Permissible Temperatures	Medium: -40 ... 125 °C Electronics / Environment: -40 ... 85 °C Storage: -40 ... 100 °C
Product Series	DMP 457
Response Time (ms)	≤ 10
Seals	FKM
Brand	BD SENSORS
Accuracy	Standard for pN ≥ 0,4 bar: 0.35 % FSO
Application	Diesel Engines, Drives, Compressors, Pumps, Boiler, Hydraulic and Pneumatic Control Systems.
Suitable For	Fuel and Oil.
Version	Standard

Pressure Sensors

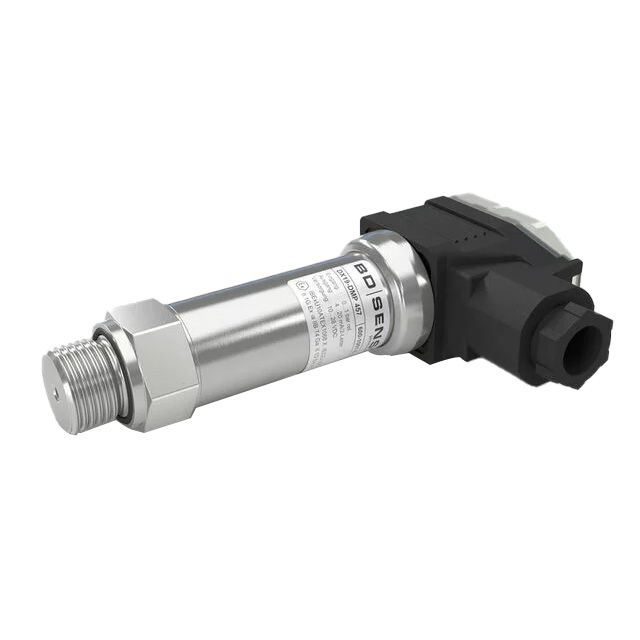

BD SENSORS DMP457 PRESS. T/M F OR SHIPBUILDING AND OFFSHORE DMP457 PRESS. T/M FOR SHIPBUIL 600250213G101001000
