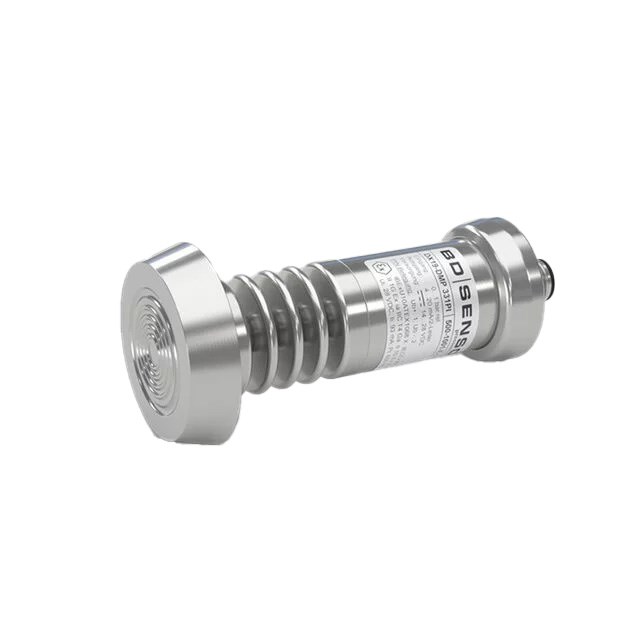

BD SENSORS DMP331PI PRECISION PRESSURE TRANSMITTER DMP331P INDUSTRIAL PRESSURE TR 500400011850C63102211

Product Code: 500400011850C63102211

Technical Specifications

Diaphragm Material Stainless steel 1.4435 (316L)
Electrical Connection Compact field housing stainless steel 1.4301 (304) [The cup nut has to be mounted by production of pressure transmitter with electrical connection field housing and mechanical connection dairy pipe. The cup nut has to be ordered as separate position.]
Electrical Protection Short-circuit protection: Permanent, Reverse polarity protection: No damage, but also no function, Electromagnetic compatibility: emission and immunity according to EN 61326.
Filling Fluid Type Food compatible oil (FDA) / 3A
Input Pressure (bar) 0.40
Mechanical Connection Clamp DN 50 / 2" (DIN 32676) / 3A
Mechanical Stability Vibration: G 1/2": 20 g RMS (25 ... 2000 Hz), Others: 10 g RMS (25 … 2000 Hz) according to DIN EN 60068-2-6. Shock: G 1/2": 500 g / 1 msec, Others: 100 g / 1 msec according to DIN EN 60068-2-27.
Operational Life 100 million load cycles.
Output Signal 4 … 20 mA / 2-wire
Permissible Temperatures Medium: -10 ... 125 °C Medium with Cooling Element: -10 ... 250 °C/-10 ... 150 °C (Overpressure/Vacuum) Electronics / Environment: -40 ... 85 °C Storage: -40 ... 100 °C
Product Series DMP 331P
Response Time (ms) < 10
Seals For clamp, dairy pipe, Varivent®: Without
Brand BD SENSORS
Application Food and beverage related applications. Pharmaceutical industry.
