Diaphragm Material	Ceramics Al2O3 96 %
Electrical Connection	Male and female plug ISO 4400 (for cable Ø 4 … 6 mm).
Electrical Protection	Short-circuit protection: Permanent, Reverse polarity protection: No damage, but also no function, Electromagnetic compatibility: emission and immunity according to EN 61326 & DNV (Det Norske Veritas).
Input Pressure (bar)	0.25
Mechanical Connection	G1/2" DIN 3852 open pressure port
Mechanical Stability	4 g (according to DNV: Class B, curve 2 / basis: IEC 60068-2-6)
Operational Life	100 million load cycles
Output Signal	4 … 20 mA / 2-wire
Permissible Temperatures	Medium: -40 ... 125 °C Electronics / Environment: -25 ... 85 °C Storage: -40 ... 100 °C
Pressure Port	Copper-nickel-alloy (CuNi10Fe1Mn) [CuNi10Fe1Mn only in combination with G 1/2" open pressure port (code H00); not possible with field housing (code 880)].
Product Series	DMK 458
Response Time (ms)	Mean response time: ≤ 200 Max. response time: 380
Seals	FKM
Brand	BD SENSORS
Accuracy	0.25 % FSO
Application	Monitoring of pressure during loading and unloading processes. Monitoring of a ship´s position and draught. Use in anti-heeling systems (Water and sea water). Level measurement in ballast and storage tanks.
Version	Standard

Pressure Sensors

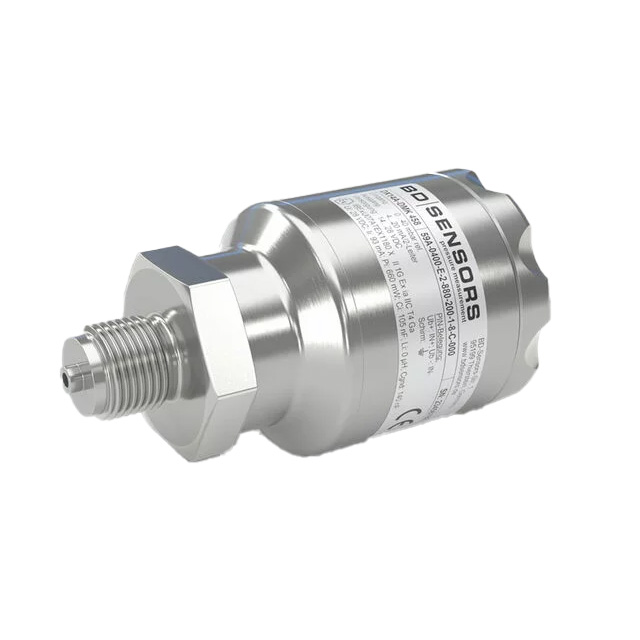

BD SENSORS DMK458 PRESSURE T/M FOR MARINE AND OFFSHORE DMK458 PRESSURE T/M FOR MARINE 59A250012G10H001K2000
