Diaphragm Material	Ceramics Al2O3 96 %
Electrical Connection	Male plug M12x1 (4-pin) / metal
Electrical Protection	Short-circuit protection: Permanent, Reverse polarity protection: No damage, but also no function, Electromagnetic compatibility: emission and immunity according to EN 61326.
Input Pressure (bar)	0.25
Mechanical Connection	Dairy pipe DN 50 (DIN 11851) [The cup nut has to be mounted by production of pressure transmitter with electrical connection field housing and mechanical connection dairy pipe. The cup nut has to be ordered as separate position.]
Mechanical Stability	Vibration: 10 g RMS (20 ... 2000 Hz) according to DIN EN 60068-2-6. Shock: 100 g / 1 msec according to DIN EN 60068-2-27.
Operational Life	100 million load cycles
Output Signal	4 … 20 mA / 2-wire
Permissible Temperatures	Medium: -40 ... 125 °C Electronics / Environment: -40 ... 85 °C Storage: -40 ... 100 °C
Pressure (mH2O)	2.5
Pressure Port	Stainless steel 1.4404 (316L)
Product Series	DMK 351P
Response Time (ms)	Mean response time: ≤ 200 Max. response time: 380
Seals	FKM
Brand	BD SENSORS
Accuracy	0.35 % FSO
Application	Food industry. Chemical and petrochemical industry. Preferred used for paint and varnish, viscous and pasty media.
Version	Standard

Pressure Sensors

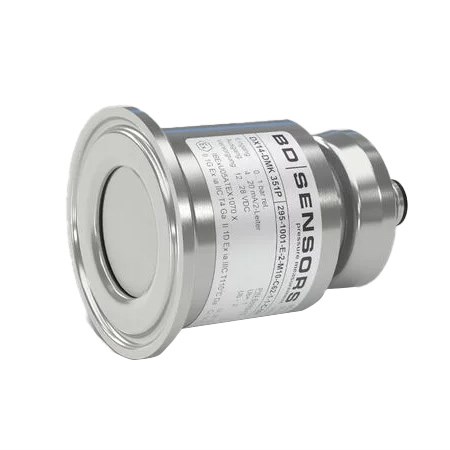

BD SENSORS BD SENSOR 295250013M10M76112000 DMK351P PRESSURE TRANSMITTER P 295250013M10M76112000
